The XL7 touch screen HMI controller, from Horner Automation, is considered "obsolete" and limited stock is available. We recommend considering the new XL7 Prime, or additional 7" models: the XLW Prime, Horner Canvas 7D, and the Canvas 7.

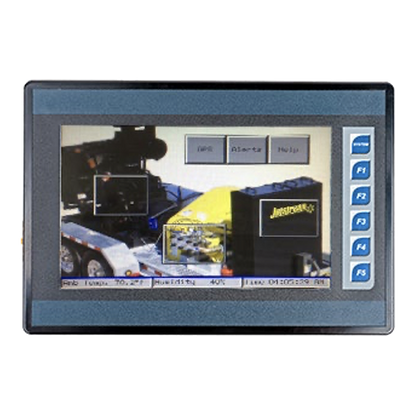

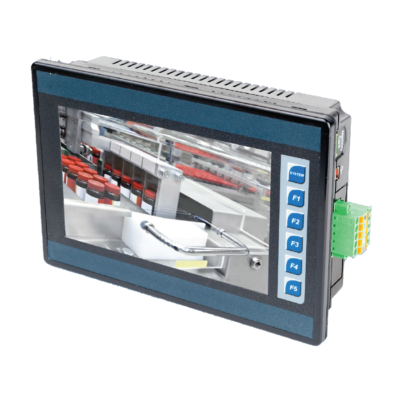

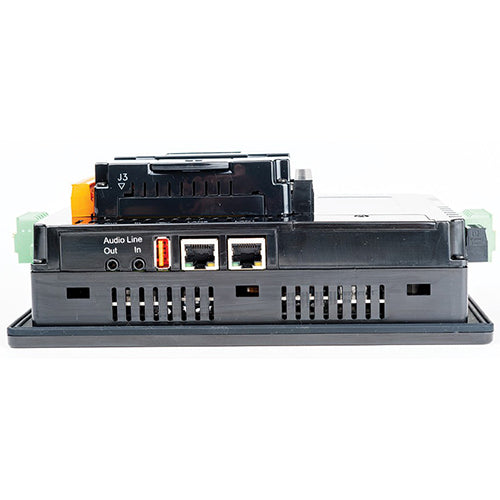

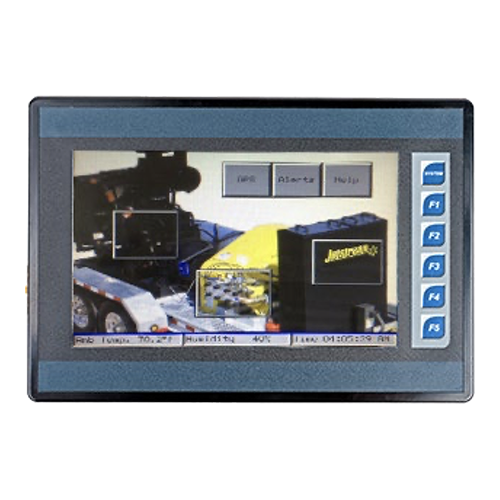

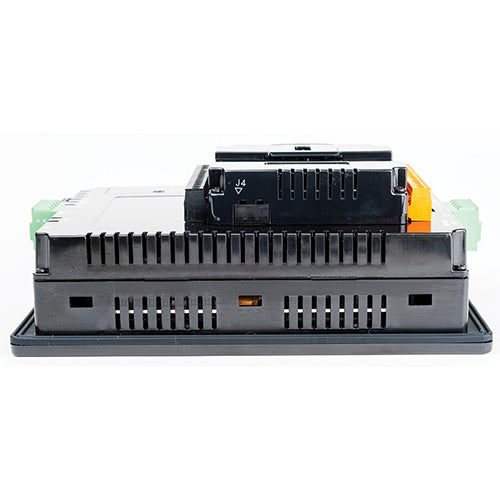

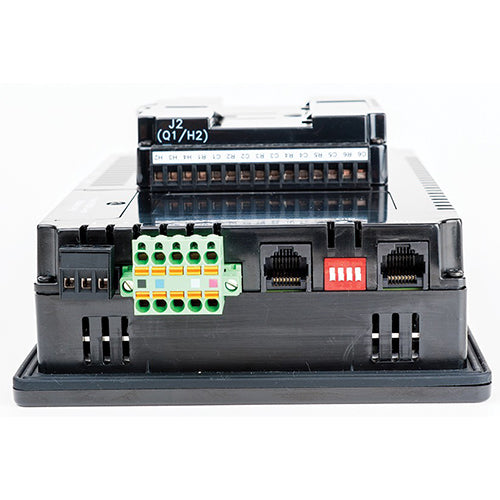

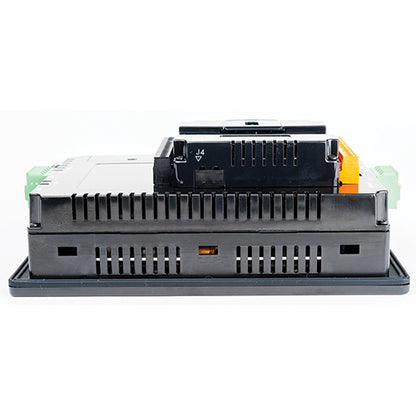

XL7 Touch Screen HMI Controller from Horner Automation
The XL7 Series touch screen HMI controller includes two CAN ports where one port utilizes CsCAN for Distributed Plug and Play I/O over a 500m distance. The second port provides support for CANopen and mobile applications. The XL7 Series also features two high-speed counters and dual 10/100 Ethernet ports, which adds flexibility when linking to factory networks like Modbus/TCP and EtherNet/IP - while also performing standard functions like web serving, FTP file transfer, email and protocol support.
- 800×480 LCD TFT color graphics display with a high resolution resistive touchscreen
- 5 function keys in addition to a system key
- USB 2.0 On-the-Go port (mini-B 5pin) is available for programming
- also available with a USB 2.0 Host port (A) for exchanging files with USB FLASH drives
- (2) RS-232/485 ports support RTU/Modbus Commander / Responder (Master / Slave), ASCII In/Out, as well as PLC/Drive downloadable protocols
Applications of the X7 Touch Screen HMI Controller
- manufacturing, for example: custom OEM products, automotive parts, food processing, etc.
- Power management, back-up generation, HVAC, as well as environmental control
- Semiconductor applications
- mobile machinery and also packaging machinery
- Water treatment
- control of pumps, motion, compressor, in addition to distributed conveyors
The World’s Most Connected All-In-One Controller
The XL7 Series touch screen HMI / PLC controllers provide twice the connectivity of all other products in its class.
- High performance logic controller with online programming capability
- 7" WVGA color touchscreen with 1000 nits of brightness
- Built-in digital & analog input / output with two 500kHz high-speed counters
- Dual 10/100 Ethernet for factory and also worldwide networking
- Two CAN ports for fieldbus flexibility
- USB 2.0 ports for programming & FLASH drive support as well as microSD slot, up to 32GB, for virtually unlimited data logging
Standard Models of the XL7 Touch Screen HMI Controller
| Model ID | Configuration |
|---|---|
| Model 0: HE-XW1E0 | No built-in I/O |
| Model 2: HE-XW1E2 | 12 DC in, 6 Relay Out, 4 – 12-bit Analog In |
| Model 3: HE-XW1E3 | 12 DC in, 12 DC Out, 2 – 12-bit Analog In |
| Model 4: HE-XW1E4 | 24 DC in, 16 DC Out, 2 – 12-bit Analog In |
| Model 5: HE-XW1E5 | 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out |
| Model 6: HE-XW1E6 | 12 DC in, 12 DC Out, 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD), 4 – 12-bit Analog Out |
| All standard models and special order options (adders) are available for purchase through our online store. For additional assistance, please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing, ordering, and lead time support. | |
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|
| -10 | Thermistor option; add -10 to the part number for thermistor support for analog inputs 1 & 2; available on models 2, 3, and 4 only. |
| -14 | Thermistor option; add -14 to the part number for (4) channel thermistor support; available on model 2 only. |
| -22 | With Display Heater. |
| -441 | WebMI Unlimited License pre-loaded. |
| -442 | Enhanced IEC License pre-loaded. |
| -445 | MQTT License pre-loaded. |
| -602 | Screw type I/O terminals; also removes spring type terminals; model 6 only. |
| NOTE: Lead time on special order products is typically 4-6 weeks. | |
Product Documents
- Product Overview - XL Series
- Product Overview - All-New XL Prime Series
- User Manual - XL7
- Quick Reference Guide - XL7
Data Sheets
- Data Sheet - Model 0
- Data Sheet - Model 2
- Data Sheet - Model 3
- Data Sheet - Model 4
- Data Sheet - Model 5
- Data Sheet - Model 6
Case Studies
- Pizza Oven Control Project
- Quarry Project for a Construction Company
- Test Rig System for an Automotive Company
- Machine Control for Printer Manufacturing
- Logic Control System for Manufacturing
- Redundant Aircraft System Monitoring and Control
- Fuel Solutions Project
- Filter Manufacturing for Refineries and Reactors
