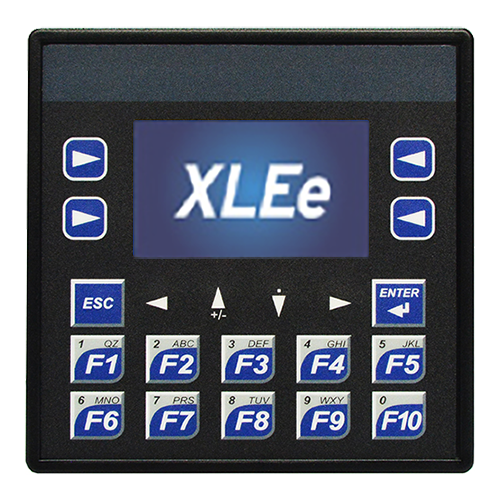

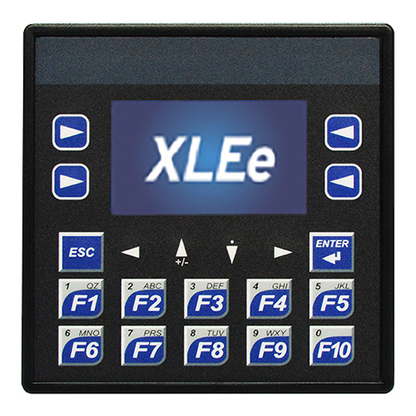

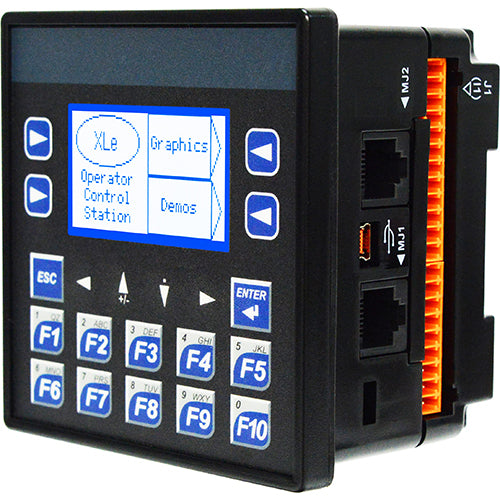

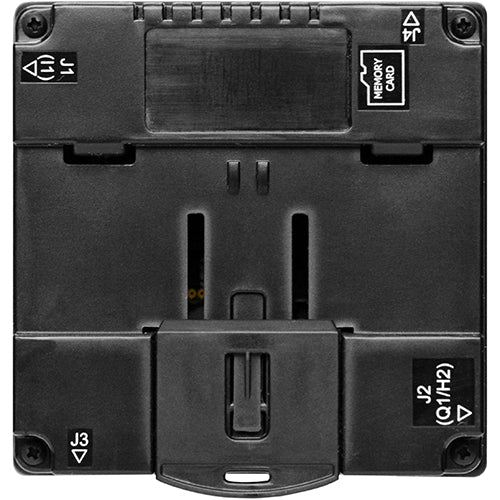

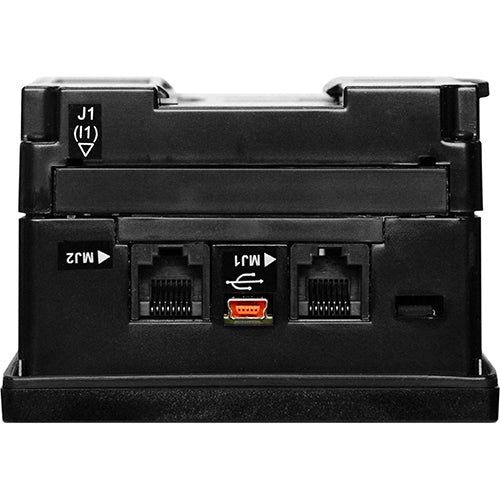

The small, dense design of the XLE Series enables you to fit more in your panel, saving space as well as resources. Overall, the XLE HMI controller packs big solutions into an overall small package, utilizing a standard quarter DIN (92x92mm) cutout. Furthermore, Horner Automation is excited to announce an upgraded series of automation controllers, the XL4 Prime.

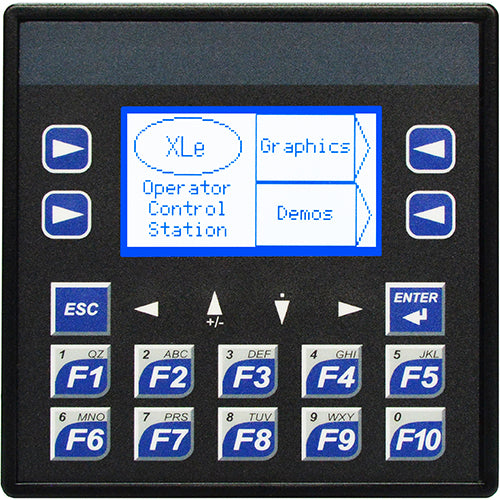

- 128×64 graphical display
- 20-key keypad with function key in addition to numeric entry capability
- logic engine features 256KB of application memory with a 0.7mS/K logic scan
- (2) RS-232/485 ports support RTU/Modbus Commander / Responder (Master / Slave), ASCII In/Out, as well as PLC/Drive downloadable protocols
- integrated CsCAN port

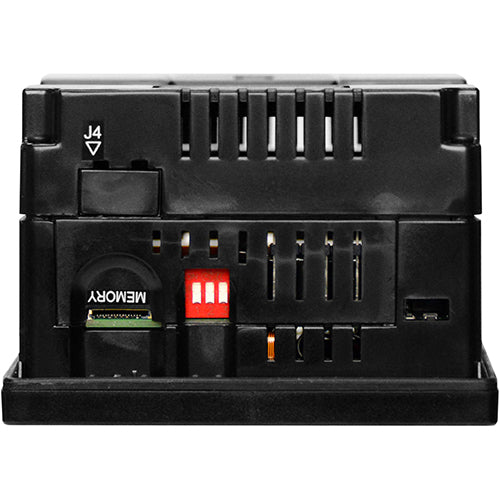

- removable mass storage device
- CANopen Commander / Responder (Master / Slave) Support

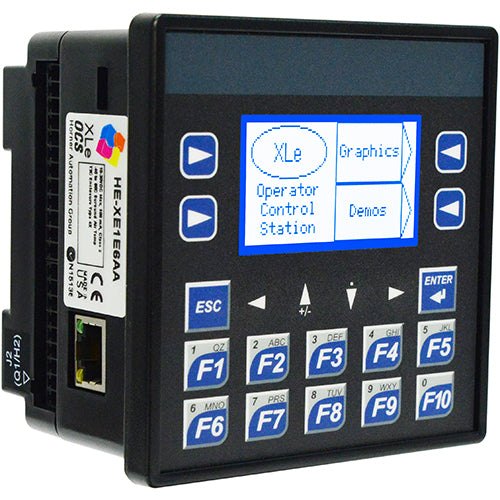

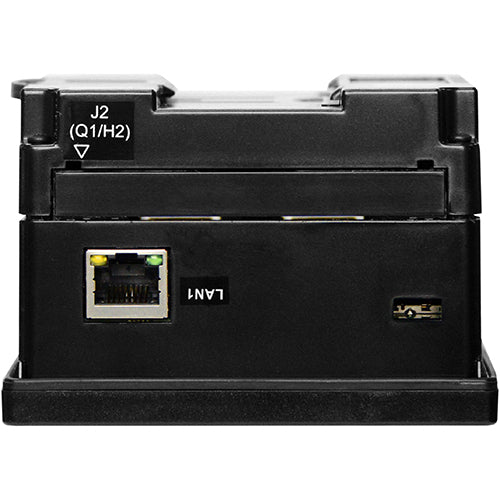

- built-in Ethernet (XLEe models only)
Flexible Input / Output (I/O) Configuration
The XLE Series features six unique built-in I/O configurations (five optional models as well as one without I/O), all of which include high speed counting capabilities. If the built-in I/O of the XLE Series isn’t enough for a specific application, operators can easily expand via the Horner OCS-I/O, CAN, or Ethernet serial with the XLEe model. With billions of external I/O combinations through several additional networking media, the wide scope of digital and analog I/O make automating your applications, in addition to your organization, as simple as the push of a button.

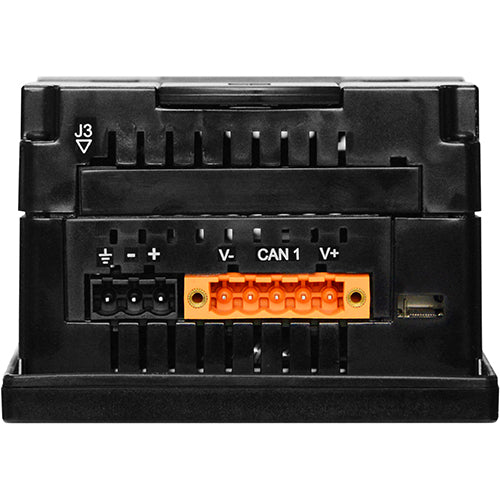

Comprehensive Connectivity
The level and scope of connectivity within the XLE Series controller is unprecedented. Furthermore, compatibility with Ethernet (standard on XLEe models), CAN, USB, RS232, RS485, the XLE Series makes communicating to other systems seamless and easy. The XLE Series employs an array of physical connections, as well as a host of protocols enabling communication in a multitude of languages. Thus, it allows the unit to communicate with various equipment within different industrial manufactured components.
Applications of the XLE Series HMI Controller
|
|
|
|
|
|
|
Standard Models of the XLE Series HMI Controller
| Model ID | Configuration |
|---|---|
| Model 0 | No built-in I/O |
| Model 2 | 12 DC in, 6 Relay Out, 4 – 12-bit Analog In |
| Model 3 | 12 DC in, 12 DC Out, 2 – 12-bit Analog In |
| Model 4 | 24 DC in, 16 DC Out, 2 – 12-bit Analog In |
| Model 5 | 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out |
| Model 6 | 12 DC in, 12 DC Out, 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD), 4 – 12-bit Analog Out |
| Standard models are available from our online store. For special order options (below), please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing as well as lead time support. | |
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|
| -10* | Thermistor option; add -10 to the part number for thermistor support for Analog Inputs 1 & 2; available on models 2, 3, and 4 only. |
| -14* | Thermistor option; add -14 to the part number for (4) channel thermistor support; available on model 2 only. |
| -22 | With display heater. |
| -33 | DeviceNet Master option; add -33 to the part number for DeviceNet Master Support (Polled & Explicit Connections only); CsCAN support is also removed. |
| -44 | SAE J1939 option; add -44 part number extension for SAE J1939 communications; CsCAN support is also removed. |
| -200* | CANopen Firmware pre-loaded; CsCAN support is also removed. |
| -602* | Adds screw type I/O terminals; also removes spring type terminals; model 6 only. |
| -603* | Adds display heater and screw type I/O terminals; also removes spring type terminals; available on model 6 only. |
| NOTE: Lead time on special order products is typically 4-6 weeks. | |
| *Not available for purchase on the web store; please contact us for ordering assistance. | |
