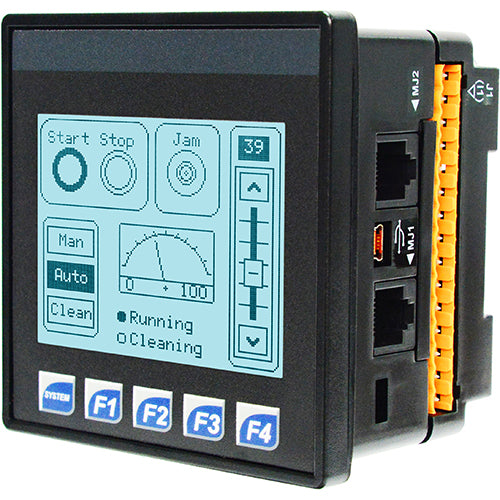

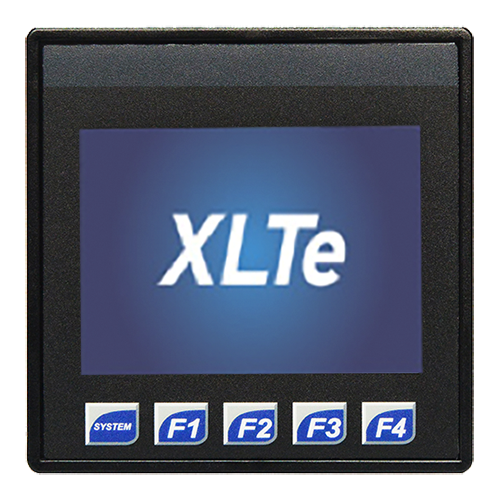

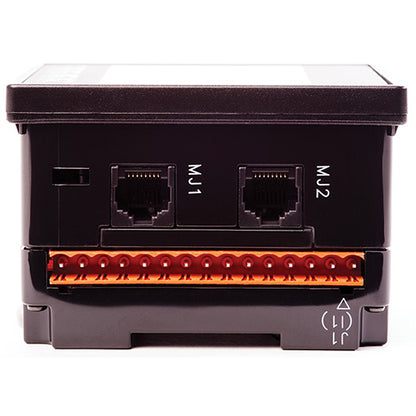

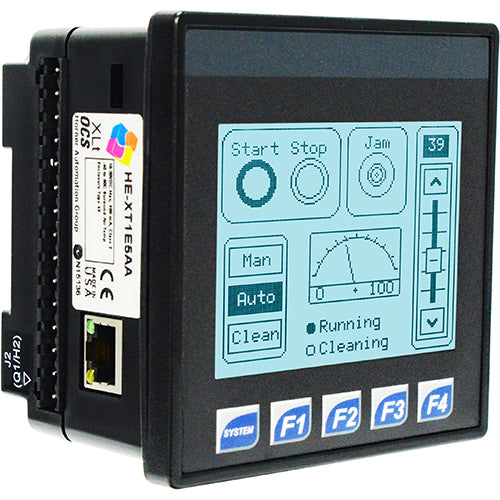

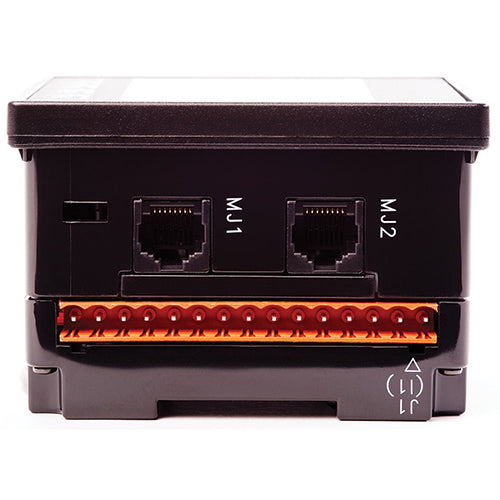

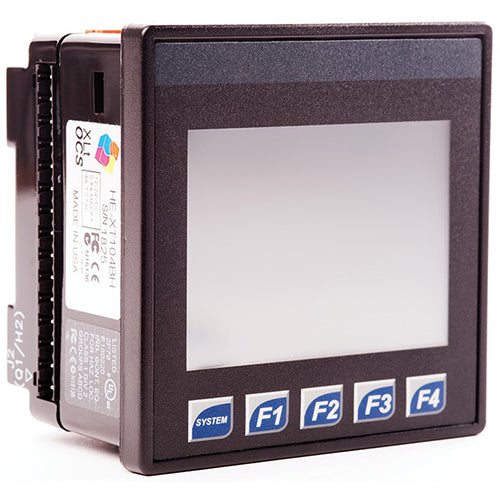

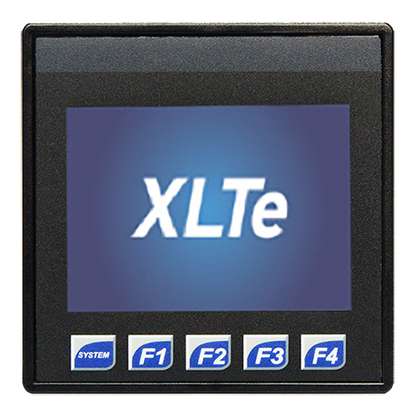

XLTe / XLT Series Programmable Logic Controller

The XLT programmable logic controller series features a built-in logic engine, operator interface, and networking. Logic engine features 256KB of application memory. Furthermore, XLTe models feature Ethernet connectivity built-in. Horner Automation is also excited to announce an upgraded series of HMI controllers, the XL4 Prime.

Extensive Control and Logic Features
Many of the features found in more high-end controllers are available in our XLT Series OCS controllers. The XLT Series utilizes a sunlight readable backlit touchscreen (good for dark and sunlight), physical keys for buttons, and a strong graphical user interface (GUI) to integrate the HMI into the control system.

Datalogging: massive data storage for later analysis or recall
Scheduling: easily enable period and time-based measurements/events; includes standard real time clock
Floating point and advanced math: comprehensive functions easily performs complex mathematical processing
Multi language support: easily integrate into diverse markets through one product: custom fonts for different languages, symbols, or sizes.

Ordering Options
All standard models and some special order options are available for purchase through our online store. For additional special order options (adders), please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing, ordering, and lead time support.

$1,145.00 USD

Sale Sold out

SKU:HE-XT1E0

Quantity

View full details

The XLT Series offers complete control, input / output (I/O), networking, and also automation controller capabilities empowered by a streamlined design. The small, dense design of the XLT and XLTe programmable logic controllers enable you to fit more in your panel, thus saving space and resources. Furthermore, the XLT Series packs a big picture into an overall small package, utilizing a standard quarter DIN (92x92mm) cutout. In addition, Horner Automation is excited to announce an upgraded series of HMI controllers, the XL4 Prime.

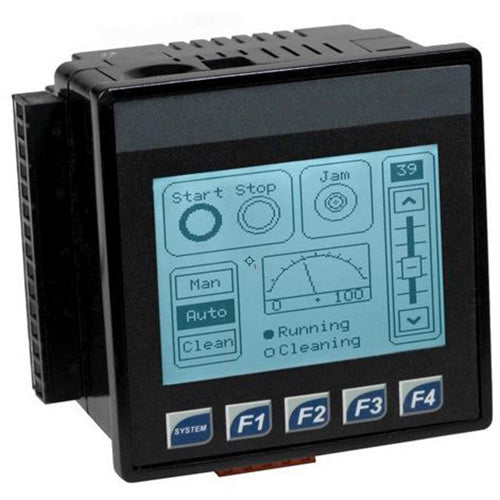

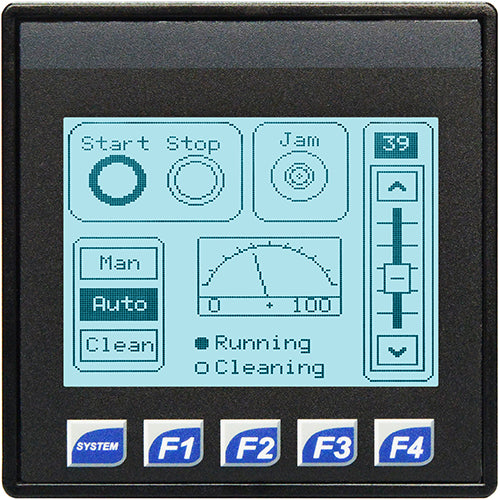

160×128 sunlight readable graphics display
high resolution resistive touchscreen
4 function keys in addition to a system key

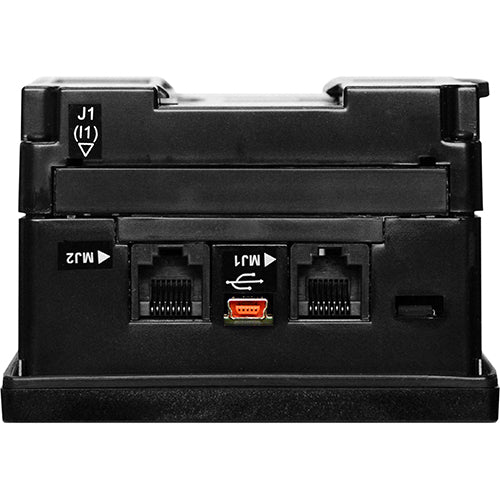

(2) RS-232/485 ports support RTU/Modbus Commander / Responder (Master / Slave), ASCII In/Out, as well as PLC/Drive downloadable protocols

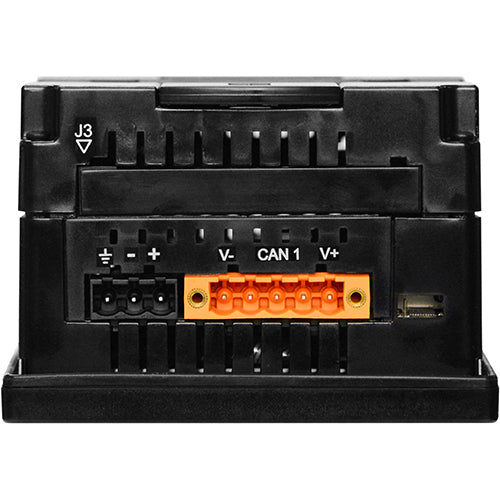

integrated CsCAN port

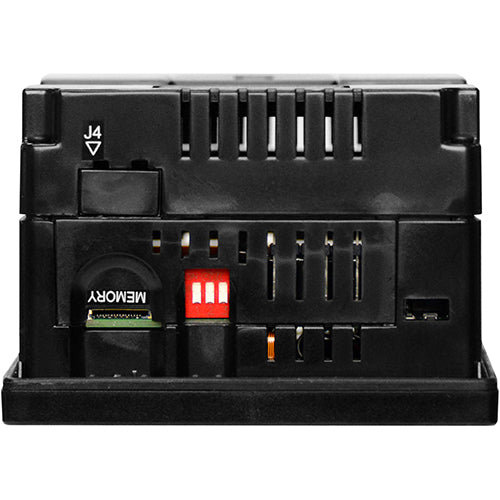

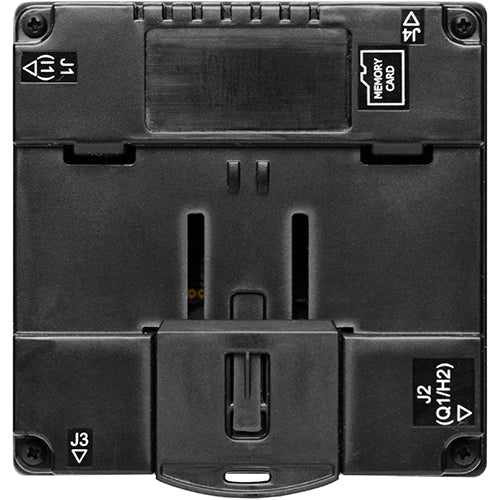

removable mass storage device
CANopen Commander / Responder (Master / Slave) Support (available as a field installable firmware update, this also removes CsCAN support)

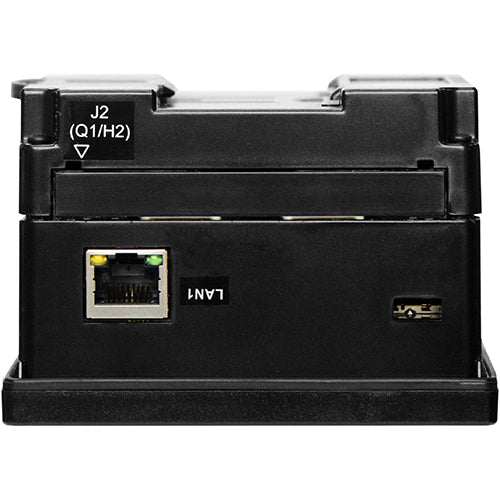

Ethernet built-in (XLTe Models only)

Flexible Input / Output (I/O) Configurations

The XLT Series features six unique, built-in input / output configurations (five optional models in addition to one without I/O). Furthermore, all models of this programmable logic controller include high speed counting capabilities – a truly advantageous feature for such a small package! If the built-in I/O of the XLT Series isn’t enough for your specific application, you can also expand via the Horner OCS-I/O, CAN, or Ethernet serial with the XLTe model. With billions of external input / output combinations through several additional networking media, the wide scope of digital and analog I/O make automating your applications, as well as your organization, as simple as the push of a button.

Comprehensive Connectivity

The level and scope of connectivity within the XLTe model programmable logic controller is unprecedented. Compatible with Ethernet (standard on XLTe models), CAN, USB, RS232, RS485, the XLT Series makes communicating to other systems seamless as well as easy. The XLT Series employs an array of physical connections, in addition to a host of protocols enabling communication in a multitude of languages. Thus, it allows the unit to communicate with various equipment within different industrial manufactured components.

Applications of the XLT Series Programmable Logic Controller

Agriculture	Building Automation	Material Handling	Oil and Gas
reduce energy consumption increase overall productivity	improve occupant comfort economical operation systems	minimize HMI inefficiencies track, log, as well as catalog data	maximize capacity utilization maintain emission standards
Renewable Energy	Water and Wastewater	Manufacturing
data logging in addition to remote access sunlight and also UV protection	station pump control remote water well controls	production management as well sa control datalogging

XLT-Series-XLTe-Programmable-Logic-Controller-Horner-Automation-Controls-HMI-PLC-PSC-Texas

Standard Models of the XLT Series Programmable Logic Controller

Model ID	Configuration
Model 0	No built-in I/O
Model 2	12 DC in, 6 Relay Out, 4 – 12-bit Analog In
Model 3	12 DC in, 12 DC Out, 2 – 12-bit Analog In
Model 4	24 DC in, 16 DC Out, 2 – 12-bit Analog In
Model 5	12 DC in, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out
Model 6	12 DC in, 12 DC Out, 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD), 4 – 12-bit Analog Out
Standard models are available from our online store. For special order options (below), please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing as well as lead time support.

Special Order Options (Adders)

Part Number Extension	Description
-10*	Thermistor option; add -10 to the part number for thermistor support for Analog Inputs 1 & 2; available on models 2, 3, and 4 only.
-14*	Thermistor option; add -14 to the part number for (4) channel thermistor support; available on model 2 only.
-22	With display heater.
-33	DeviceNet Master option; add -33 to the part number for DeviceNet Master Support (Polled & Explicit Connections only); CsCAN support is also removed.
-44	SAE J1939 option; add -44 part number extension for SAE J1939 communications; CsCAN support is also removed.
-602*	Adds screw type I/O terminals; also removes spring type terminals; model 6 only.
-603*	Adds display heater and screw type I/O terminals; also removes spring type terminals; available on model 6 only.
NOTE: Lead time on special order products is typically 4-6 weeks.
*Not available for purchase on the web store; please contact us for ordering assistance.
