The EXL10 automation controller with built-in HMI Interface, from Horner Automation, is considered "mature" and will soon no longer be in production. We recommend considering the new XL10W Prime, or additional 10" models: the XL10 Prime or Horner Canvas 10D.
EXL10 with PLC and HMI Interface from Horner Automation

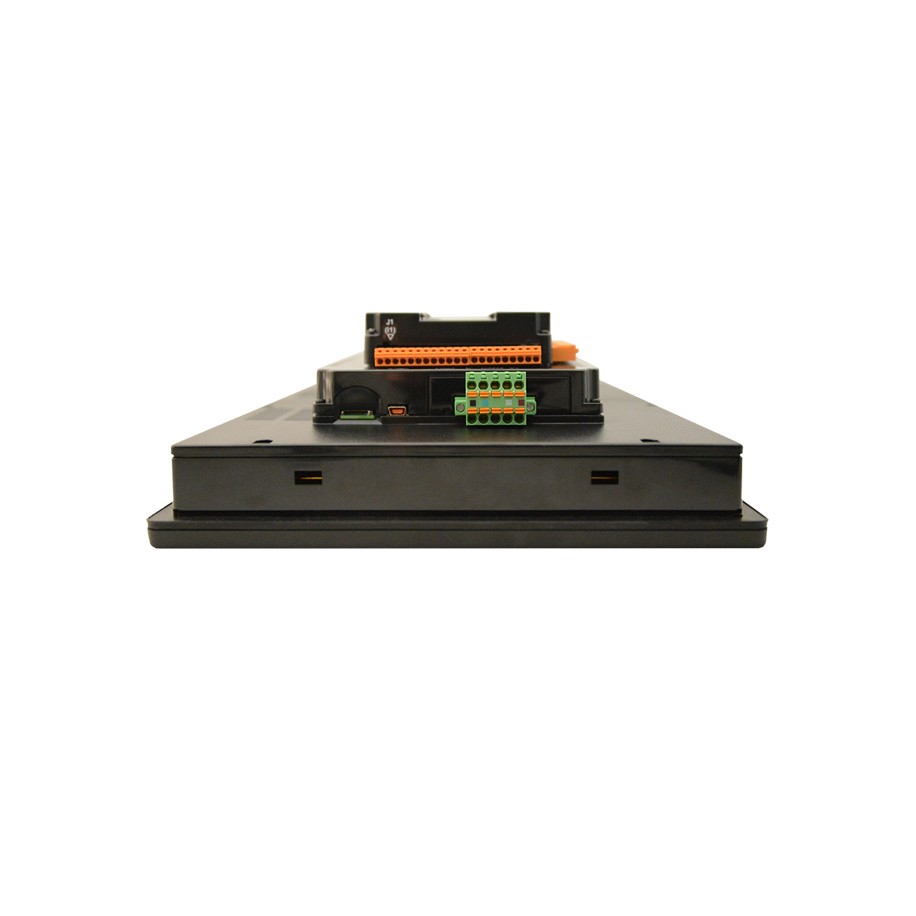

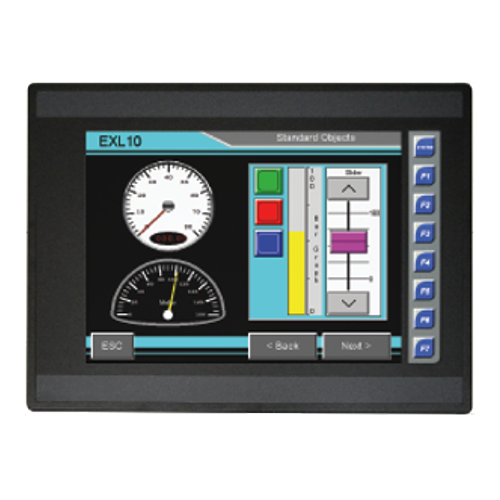

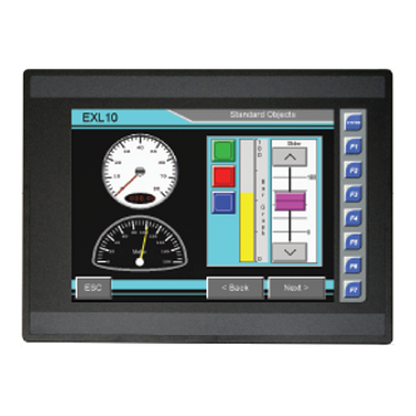

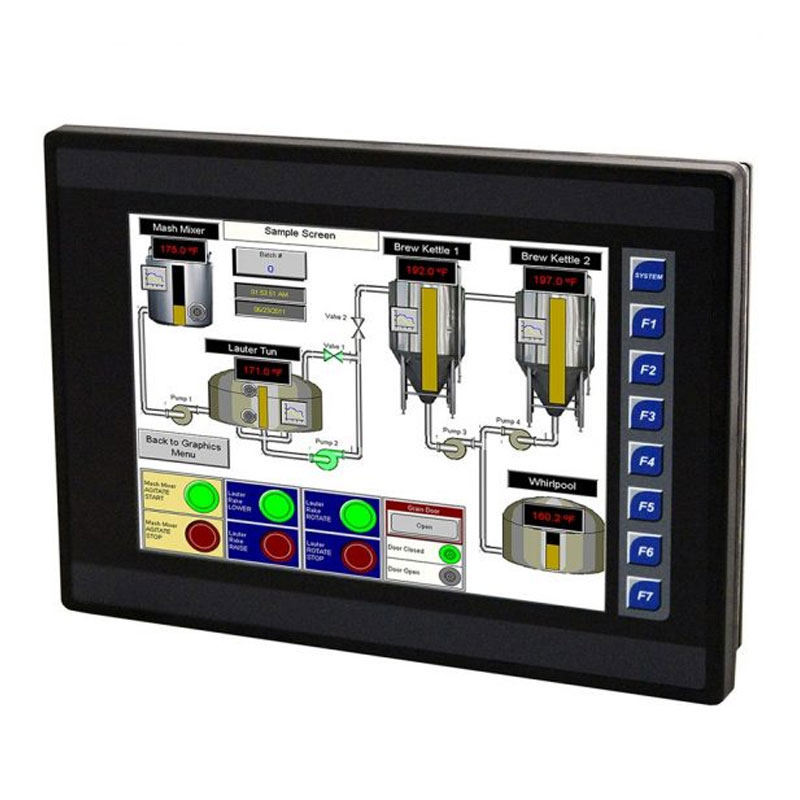

The EXL10 pushes the 10 inch all-in-one PLC with HMI interface controllers to the next level through dual CAN, dual Ethernet, blazing processing speeds, and enhanced video/audio capabilities.
- 640×480 LCD TFT color graphics display with a high resolution resistive touchscreen
- 5 function keys as well as a system key
- also available with a USB 2.0 on-the-go port (mini-B 5pin) for programming
- USB 2.0 Host port (A) is also available for exchanging files with USB FLASH drives

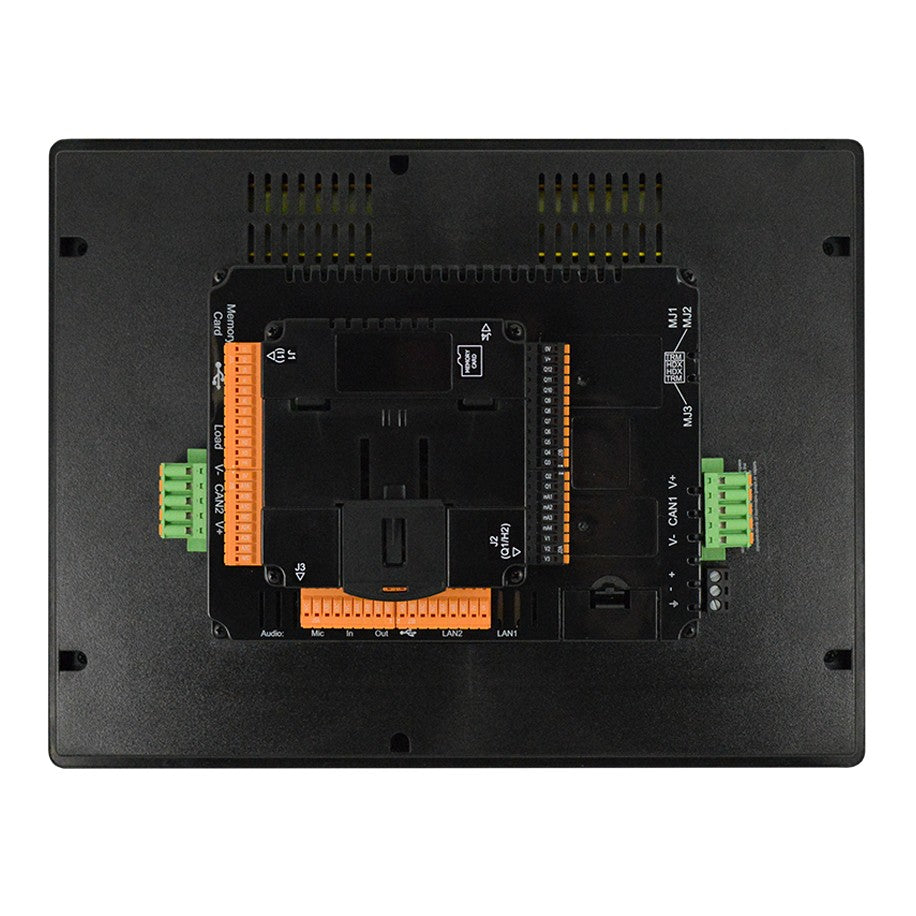

- Two (2) RS-232/485 ports support RTU/Modbus Commander / Responder (Master / Slave), ASCII In/Out, as well as PLC/Drive downloadable protocols
Common Applications of the EXL10 HMI Interface Controller
- custom OEM products, food processing, and automotive parts manufacturing
- power management and back-up generation
- semiconductor applications
- packaging machinery, mobile machinery, in addition to distributed conveyor control
- water treatment
- compressor control, pump control, as well as motion control
- HVAC and environmental control
Dual Ethernet and Dual CAN Standard Automation Control

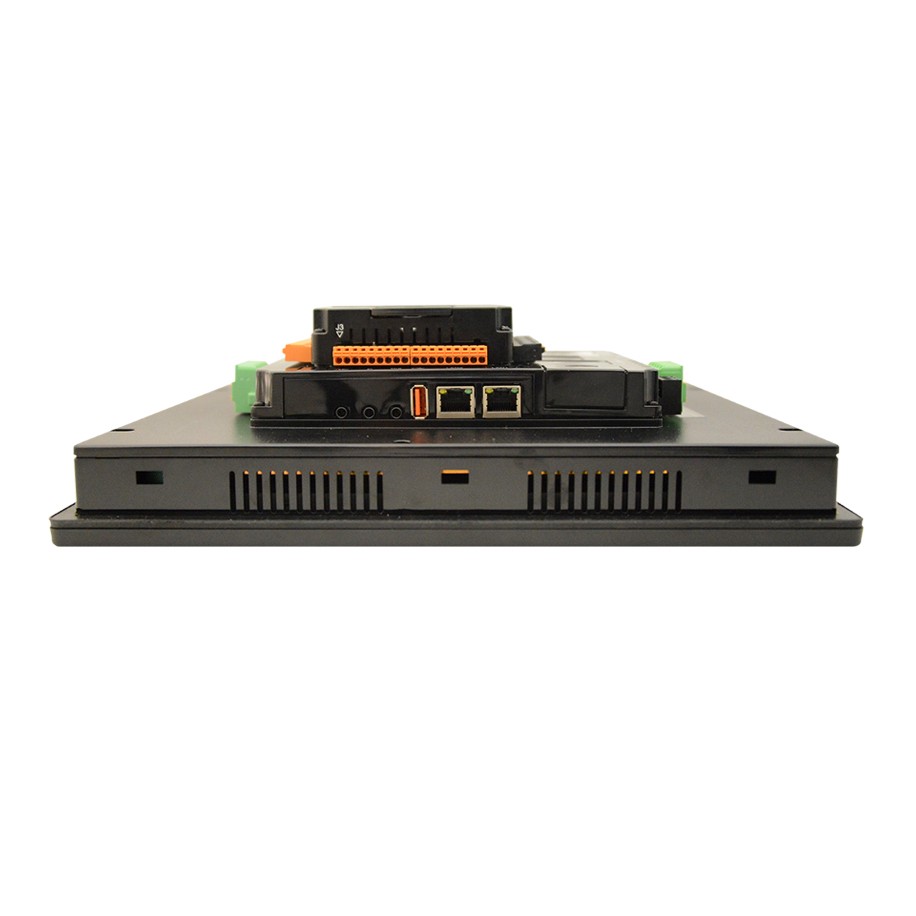

Overall, the EXL10 Series provides twice the connectivity of all other products in its class. With two high-speed counters and dual 10/100 Ethernet ports, the EXL10 adds flexibility when linking to factory networks like integrated Web Server, FTP Host, Email functionality, Modbus TCP Commander / Responder (Master / Slave), as well as program updates, and more.
Online Programming, High-Speed USB 2.0, and Flexible I/O
The EXL10 includes two USB 2.0 ports and a host port as well as an on-the-go port. The host port allows connection of removable FLASH drives, which supports drives up to 2TB. With EXL10 online programming, it also allows the logic program to be modified on-the-fly without entering stop mode.
Furthermore, the large display benefits end-users by providing high outdoor visibility and allowing the viewing of the EXL10 in a variety of ambient lighting conditions. In addition to exceptional display performance, the EXL10 contains a powerful logic engine with built-in digital and analog I/O and online programming capability.
Standard Models of the EXL10 PLC with Built-In HMI Interface
| Model ID | Configuration |
|---|---|
| Model 0: HE-EXV1E0 | No built-in I/O |
| Model 2: HE-EXV1E2 | 12 DC in, 6 Relay Out, 4 – 12-bit Analog In |
| Model 3: HE-EXV1E3 | 12 DC in, 12 DC Out, 2 – 12-bit Analog In |
| Model 4: HE-EXV1E4 | 24 DC in, 16 DC Out, 2 – 12-bit Analog In |
| Model 5: HE-EXV1E5 | 12 DC in, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out |
| Model 6: HE-EXV1E6 | 12 DC in, 12 DC Out, 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD), 4 – 12-bit Analog Out |
| All standard models and special order options (adders) are available for purchase through our online store. For additional assistance, please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing, ordering, and lead time support. | |
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|
| -10 | Thermistor option; add -10 to the part number for thermistor support for analog inputs 1 & 2; available on models 2, 3, and 4 only. |
| -14 | Thermistor option; add -14 to the part number for (4) channel thermistor support; available on model 2 only. |
| -441 | WebMI Unlimited License pre-loaded. |
| -442 | Enhanced IEC License pre-loaded. |
| -445 | MQTT License pre-loaded. |
| -602 | Screw type I/O terminals; also removes spring type terminals; model 6 only. |
| NOTE: Lead time on special order products is typically 4-6 weeks. | |
