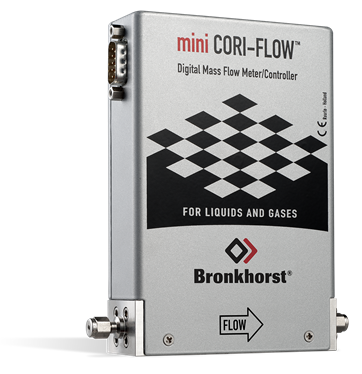

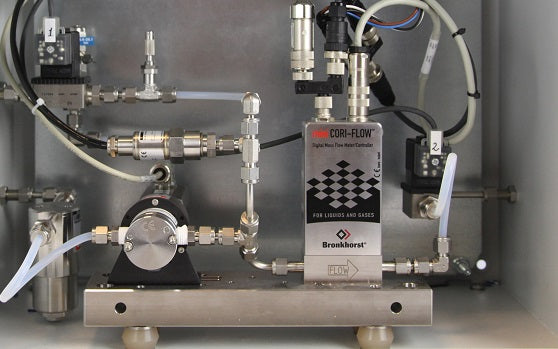

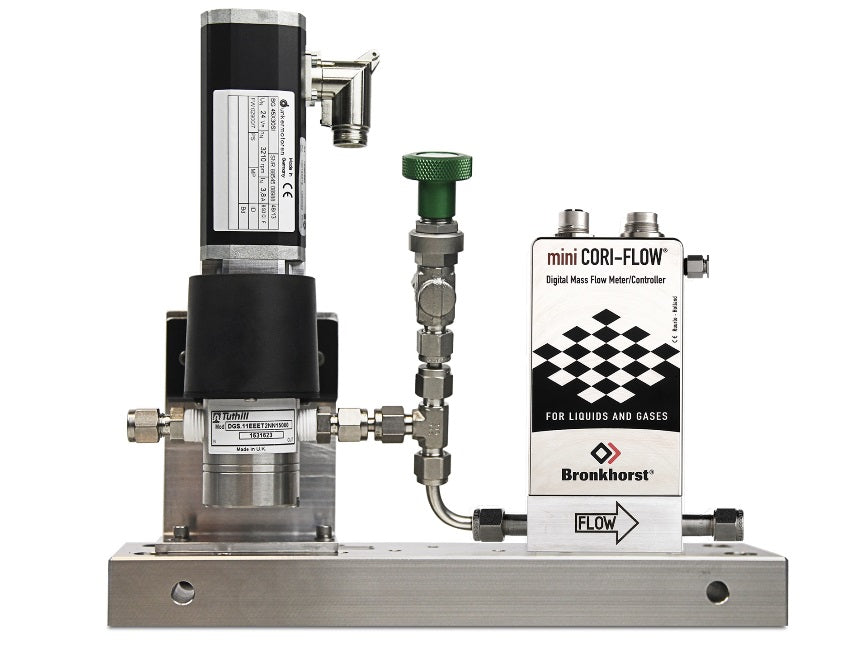

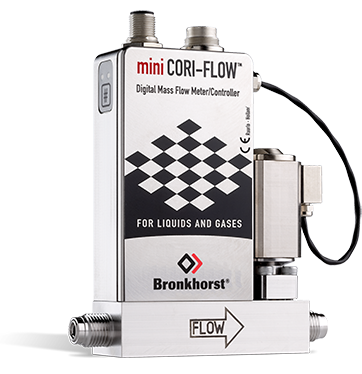

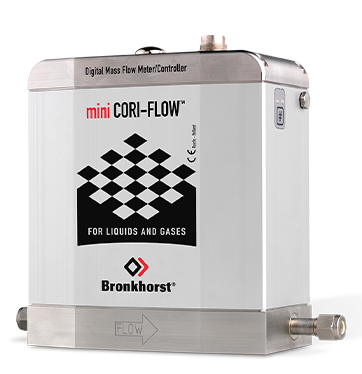

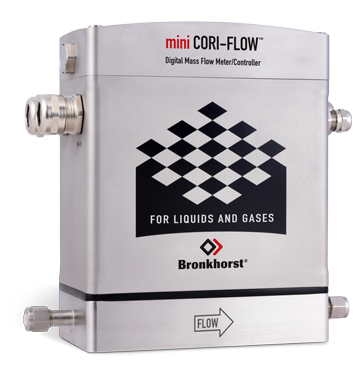

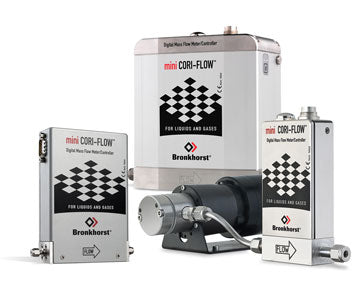

The mini CORI-FLOW is a compact, high-precision Coriolis flow meter and controller for both liquids and gases. Employing the established Coriolis measurement principle, it delivers direct mass-flow readings that are independent of fluid properties. Thus, Coriolis flow meters enable superior accuracy, repeatability and reliability. With integrated PID controller functionality, the mini CORI-FLOW allows precise dosing via pumps or shut-off valves without a separate PLC.
Therefore, it's ideal for applications such as additive dosing in food & beverage, chemical pilot plants, or catalyst injection. Its compact size makes it an excellent choice for constrained spaces, for example, laboratories, OEM installations or pilot-scale systems. Furthermore, it offers advanced communication protocols for modern integration. This Coriolis flow meter supports a wide range of flow rates (from very low to several hundred kilograms per hour), and is also built for demanding environments including hazardous areas (Zone 1/2).
Temperature as well as density measurement channels, along with multi-parameter capabilities, expand its utility beyond mere flow rate monitoring to full process control. Whether your process involves high-pressure dosing, ultra-low-flow metering or highly repeatable additive injection, the mini CORI-FLOW offers a reliable, turnkey solution for demanding mass flow measurement needs.
- Direct mass flow measurement, for liquids and gases
- High accuracy, excellent repeatability
- Cost-effective design
- Compact design, with integrated PID controller for fast and stable control
- Now suitable for (very) low flow ranges
- Digital technology allows Fieldbus communication and offers user configurable control characteristics
- Optional ATEX approval Cat.3, Zone 2 rating
- Optional KCs certificate (Protection Ex nA IIC T4)
Using a Coriolis Flow Meter as an Alternative to Thermal Mass Flow Meters
The mini CORI-FLOW Series was designed to enable easy exchange of traditional thermal mass flow controllers. mini CORI-FLOW flow controllers also have the same footprint and also electrically the instruments feature the same options for analog and Fieldbus communication. Compared to thermal mass flow controllers, Coriolis based flow controllers are more accurate, faster, and offer independence from fluid properties.
Bronkhorst mini CORI-FLOW with Digital Technology
The mini CORI-FLOW Series features state-of-the-art digital technology, thus offering Fieldbus interface options and additional functions such as totalization and alarms. The instruments can be tuned according to customer requirements using the RS232 and Fieldbus interface and a number of free to use software tools.
Applications of a Coriolis Flow Meter
- Analytical systems

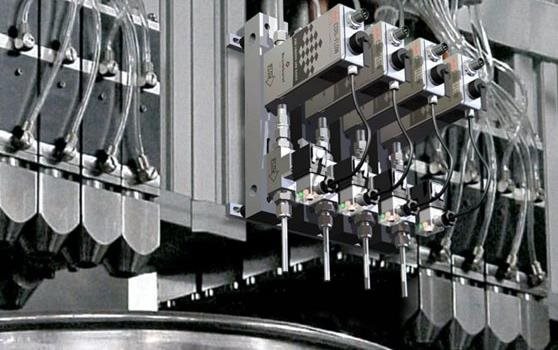

- Dosing of additives in food and beverage industries
- Petrochemical and chemical plants
- Pilot plants
- CVD/Coating systems
- Semiconductor processing
- Liquid CO2 dosing for polystyrene foam extrusion
- Catalysis at high pressure
- Dosing of additives for example, flavors and fragrances
- Better control of microbiological processes
