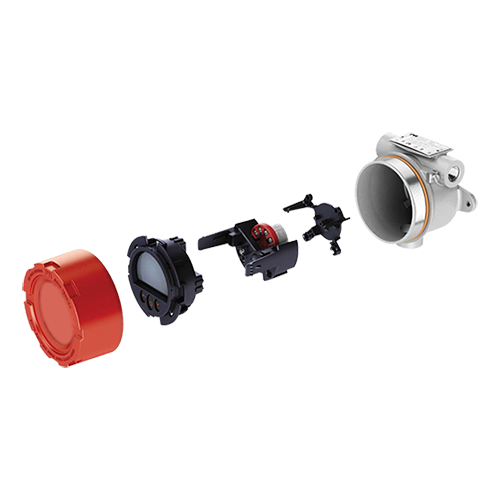

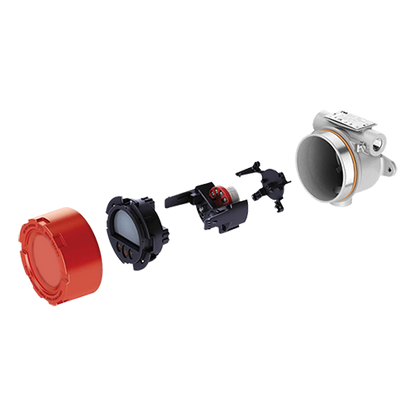

PR 7501 Field-Mounted Ex Temperature Transmitter for Hazardous Areas

The PR 7501 Field-Mounted Ex Temperature Transmitter is a robust industrial signal transmitter for accurate and reliable temperature measurement in demanding process environments. Ideal for direct field installation, the 7501, from PR electronics, supports a wide range of sensor inputs including RTD, thermocouple (TC), linear resistance, as well as bipolar mV. Furthermore, the PR 7501 converts inputs into a standardized 4-20 mA output with HART 7 communication, fully backward compatible with HART 5 systems for advanced diagnostics and configuration.

• 0, 90, 180, and 270 degree position adjustments.
• Monitoring, programming, and diagnostics view.
• Extensive diagnostics with flashing red or white backlight.
• Supports 7 languages.
• This version of the PR 7501 features an aluminum housing and is suitable for installation in zone 0, 1, 2, 21, 22, and in Class 1, Division 1 and 2 hazardous areas.
• A safe area version of the PR 7501 is also available in either a low-copper aluminum housing as well as a 316 stainless steel housing.


PR 7501 Field-Mounted Temperature Transmitter from PR electronics

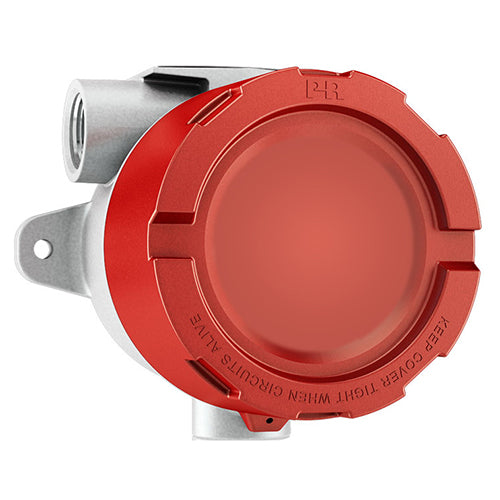

The PR 7501 can feature a high-definition local operator interface (LOI) with three optical buttons and a selectable red or white backlight. The LOI on the PR 7501 Field-Mounted Temperature Transmitter simplifies in-field setup, monitoring, and troubleshooting without opening the enclosure. Its rugged housing is high quality, low copper aluminum and meets global safety standards for installation in hazardous areas including Zone 0, 1, 2, 21, and 22 or Class 1 Division 1 and 2 applications.

• Linearized temperature measurement with TC and RTD sensors, for example, Pt100 and Ni100.
• HART communication and 4-20 mA analog PV output for individual, difference, or average temperature measurement of up to two RTD or TC input sensors.
• Conversion of linear resistance to a standard analog current signal, for example, from valves or Ohmic level sensors.
• Amplification of bipolar mV signals to standard 4-20 mA current signals.
• Up to 63 transmitters (HART 7) can connect in a multidrop communication setup.
• NAMUR NE43 and NE89.
• Users can change the HART protocol revision to either HART 5 or HART 7 protocol.

Easy Mounting, Installation, and Programming

The PR 7501 excels in demanding industrial use, offering programmable response times, exceptional signal-to-noise performance, as well as support for individual, differential, or average temperature measurement from up to two sensors. The PR 7501 Field-Mounted Temperature Transmitter supports for up to 63 devices in a multidrop HART network. Furthermore, it offers comprehensive diagnostics including flashing backlight indicators, ensuring precise process control and reducing downtime. Whether in service in chemical processing, energy production, or heavy industrial automation, the PR 7501 delivers unmatchable temperature monitoring performance and operational reliability.

• Configuration via the optional LOI through PR guided menu.
• PReset and HART modem.
• HHC, DCS, or AMS via HART.

• The PR 7501 provides the necessary failure data (SFF and PFDAVG) for SIL applications as per IEC 61508 / IEC 61511.

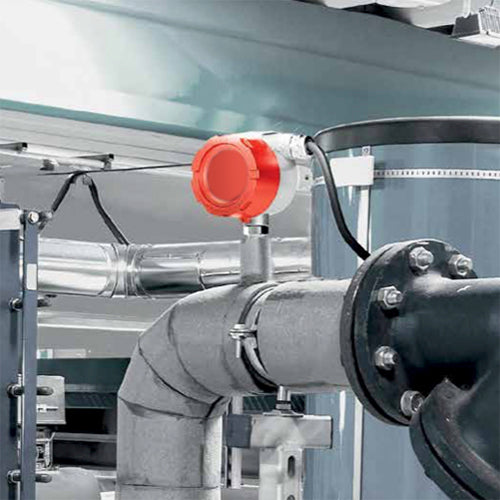

• Mounting on 1.5-2" pipe bracket or on wall / bulkhead.

Configuration Details

Interface

• Blind Cover
  • No Display or Local Operator Interface.

Transmitter

• Yes - product arrives with transmitter.
• No - includes a connection kit for connecting separate transmitter.
