PR 7916 Backplane for PR 9000 Series

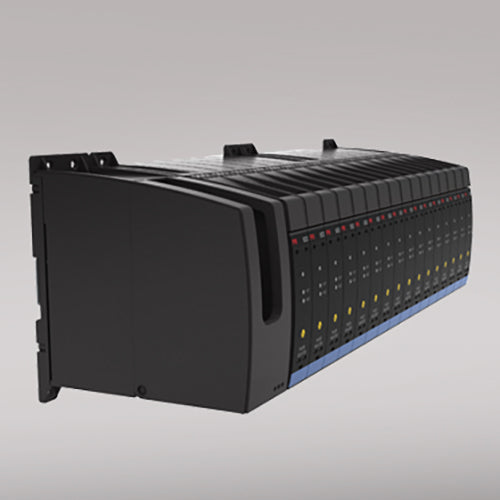

The PR 7916 Backplane for PR 9000 Series is a rugged, industrial interface solution. It simplifies and secures signal routing between PR 9000 intrinsically safe (I.S.) devices and standard automation systems such as PLCs and DCS platforms. Ideal for high-density I/O integration, this compact backplane supports up to 16 PR 9000 Series units and enables direct, redundant, and duplicate signal transmission. In addition, the 7916, from PR electronics, supports HART I/O and HART MUX connectivity for streamlining process automation wiring. This modular design supports analog input / output and digital input / output signals while maintaining SIL2 functional safety for installation with PR 9000 Series modules.

• The 7916 backplane is a compact and robust solution that enables a safe and easy connection of PR 9000 Series I.S. device signals into standard automation systems.
• Standard automation system cables and connectors link the backplane to I/O cards.
• The PR 7916 backplane is suitable for Direct, Redundant, Duplicate signaling including HART I/O System connectivity (HART MUX).
• PR 9000 Series devices isolate and convert analog input / output (AI / AO) and digital input / output (DI / DO) signals coming from, or going to I.S. areas.
• In addition, the PR 7916 routes input / output signals to a system automation I/O card.
• The PR 9000 Series maintains a SIL2 level of functional safety, even when mounting in the backplane solution.
• For smaller systems, the PR 7908 Backplane is also available and supports up to 8 modules.

PR 7916 Backplane for PR 9000 Series from PR electronics

With standard I/O cables and connectors, the PR 7916 Backplane for PR 900 Series makes it easy to connect intrinsic safe devices to non-I.S. automation I/O cards. Thus, the 7916 reduces installation time and wiring complexity in panel designs. LED indicators and digital outputs provide clear status feedback on both PR 9000 Series devices and primary/redundant power supplies. As a result, the PR 7916 enhances diagnostics and helps prevent unexpected downtime. The robust, compact chassis allows flexible horizontal or vertical mounting on panels or walls in safe or Zone 2/Div 2 hazardous areas, with easy snap-on, hot-swappable module installation.

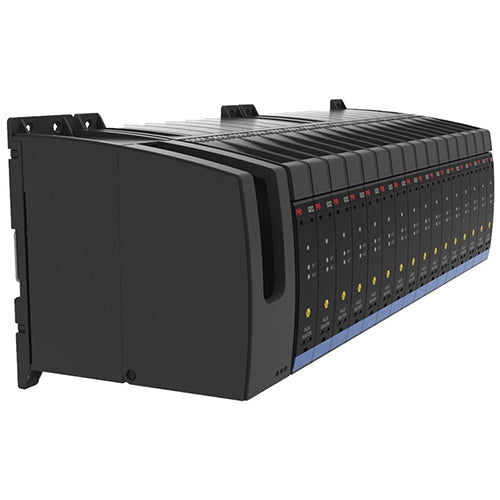

• Robust, compact high-end design that holds (16) PR 9000 Series devices.
• Digital output indicates status of the PR 9000 Series devices and primary/back-up power supplies.
• Flexible 24 VDC supply voltage and redundant power supply connection solution.
• NOTE: PR 9000 Series modules are sold separately.

Easy Mounting, Installation, and Programming

Built for demanding industrial environments, the PR 7916 Backplane offers wide temperature operation  (-4 to 140˚F), flexible 24 VDC power options, and support for redundant supply configurations. Whether in service for process control, energy, or manufacturing systems, this backplane delivers reliable, organized signal distribution and powerful integration for complex automation applications.

• Flexible horizontal/vertical panel or wall mounting in the Safe or Zone 2 / Div 2 areas.
• PR 9000 Series devices easily snap ON and OFF using piano keys, and devices can also be hot-swapped.
• Tag number and ID labels easily mount and can be read using the dedicated piano key spacer.
• Wide temperature operation range: -4 to 140˚F (-20 to 60˚C).
