The SmartStack I/O Series from Horner Automation is no longer in production. We recommend considering the Horner OCS-I/O for new users and new applications in need of remote Input / Output.
SmartStack I/O from Horner Automation

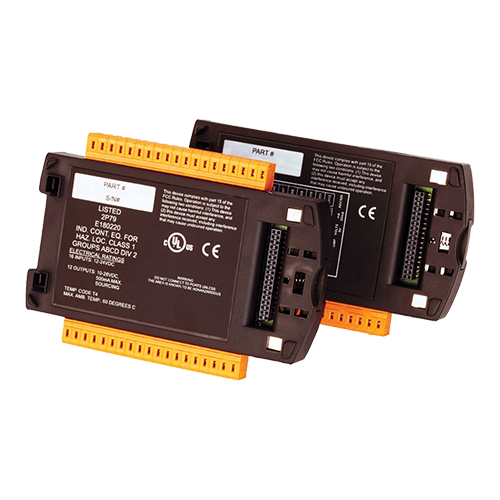

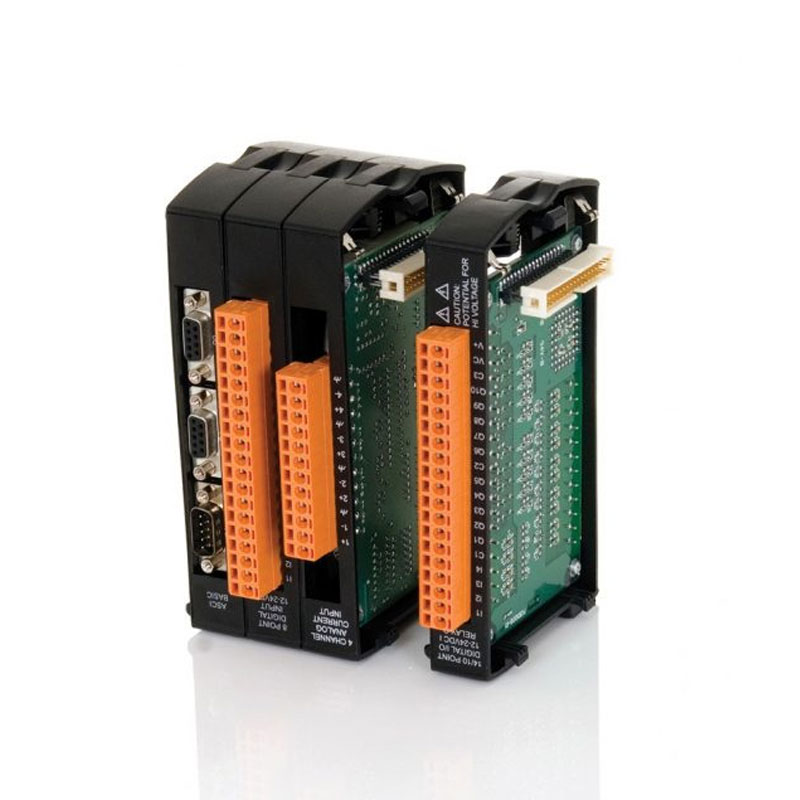

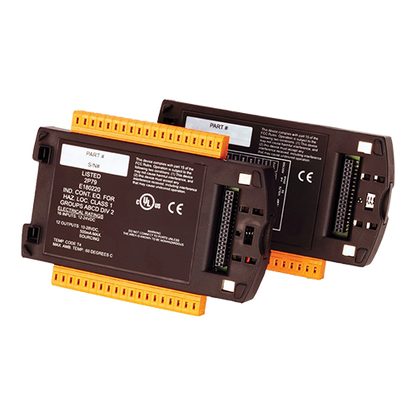

The SmartStack is a legacy device that is no longer in production by the manufacturer, Horner Automation. In its place, now available is a newer input / output technology, the OCS-I/O. Unlike conventional I/O for PLCs, SmartStack I/O is not a rack-mount design. SmartStackI/O modules snap onto the automation controller or to an off-mount base. They also stack onto each other. The SmartStack utilizes a very small amount of panel space for the number of I/O available. These I/O modules have plastic or metal housings, which meets stringent noise, vibration, and shock standards.
A maximum of 4 modules can stack directly onto many OCS. Additionally, another 20 modules can connect by using the fiber optic FOX I/O System. Several OCS models can also have 20 or more SmartStack modules using the FOX I/O System. There are over 50 SmartStack input / output modules available. They include a variety of mix input / output modules, offering a combination of inputs and outputs, digital and analog, and specialty modules: High-Speed Counter (1 MHz), Stepper Indexer, ASCII BASIC, and AC Power Monitoring modules. You can select from a full complement of temperature input modules (Thermocouple, RTD, Thermistor), as well as SmartStack communication options include Ethernet TCP/IP, DeviceNet Commander and Responder (Master and Slave), PROFIBUS Commander and Responder and CANopen Commander.
I/O Expansion for Automation Controllers
You have several ways to expand the number of SmartStack modules. Connecting a miniRCS via the CsCAN port adds one more SmartStack module. Networking an RCS (Remote Control Station) controller allows you to add up to 4 more SmartStack modules. If you use a FOX100 input / output Fiber Optic Expansion Module and the FOX input / output System, you can have up to 23 SmartStack modules. This would contain 3 modules and the FOX100 on the OCS, plus 20 modules with the FOX input / output System. When using NX and Color-Touchscreen OCS models, you may connect 5 bases and up to 20 SmartStack modules.
Switch to Horner OCS-I/O

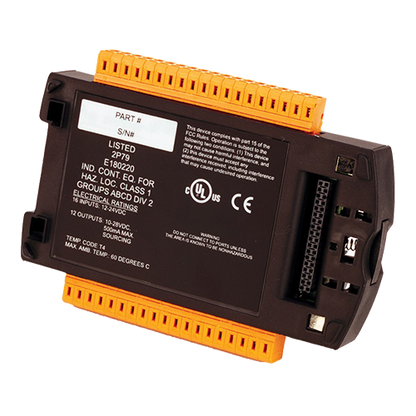

The Horner OCS-I/O is a flexible, highly expandable Input/Output system that can be applied as a local expansion I/O or as remote I/O distributed over hundreds of meters. With expandability up to 7 modules per base as well as 16 bases per network, OCS-I/O can handle almost every Input / Output need. Additionally, it includes a CsCAN In and CsCAN Out port, which allows users to easily daisy-chain multiple bases without requiring extraneous custom wiring.
- local expansion I/O or remote I/O up to 500 meters away
- expandable with up to 7 modules per base and 16 bases per network
- screw-type terminals standard; spring-clamp style optional
- nine I/O modules to choose from, all with different I/O capabilities
- compact design to allow easy installation into existing control systems
- configures with easy-to-use, free Cscape programming software
Models of the SmartStack Series
| Model ID | Digital Outputs | Digital Inputs | Analog Outputs | Analog Inputs |
|---|---|---|---|---|

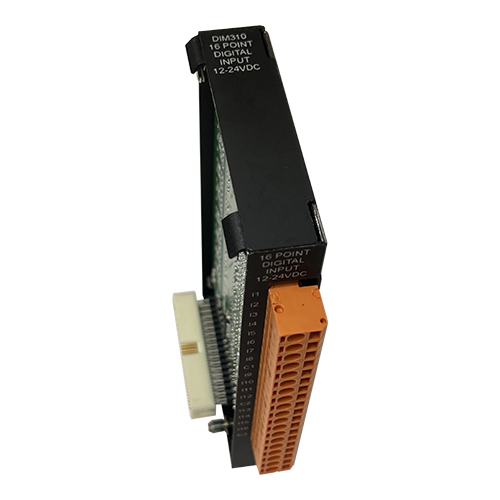

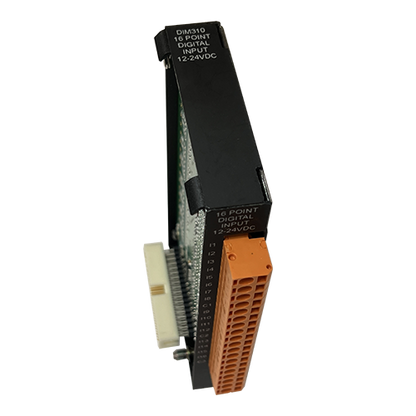

| DIM310 | – | (16) 12-24 VDC | – | – |
| DIM410 | – | (32) 12-24 VDC | – | – |

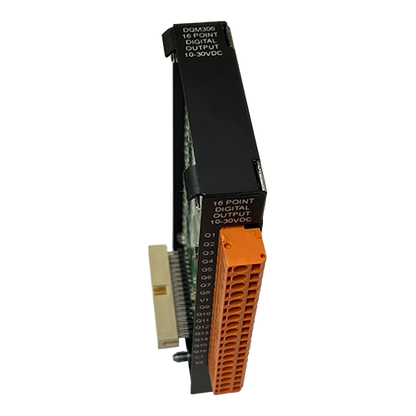

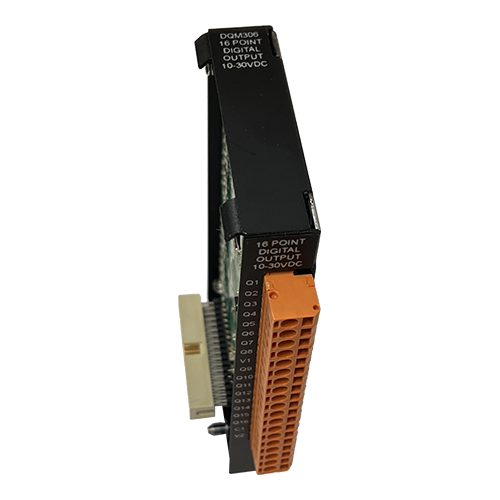

| DQM306 | (16) 10-30 VDC | – | – | – |
| DQM406 | (32) 10-30 VDC | – | – | – |

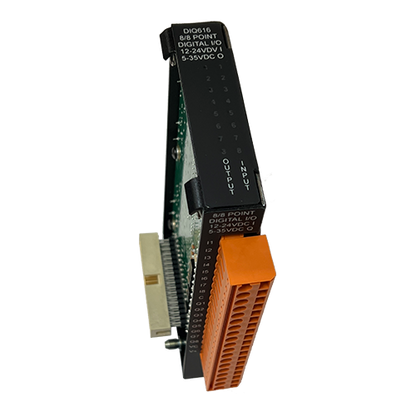

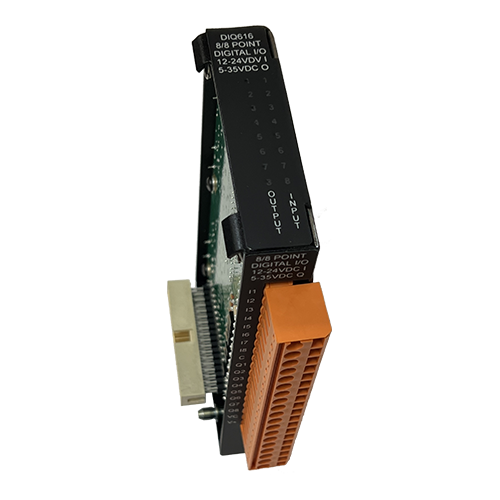

| DIQ616 | (8) 12-24 VDC | (8) 10-28 VDC | – | – |
| DIQ712 | (10) Relay 250 VAC, 30 VDC | (14) 12-24 VDC | – | – |

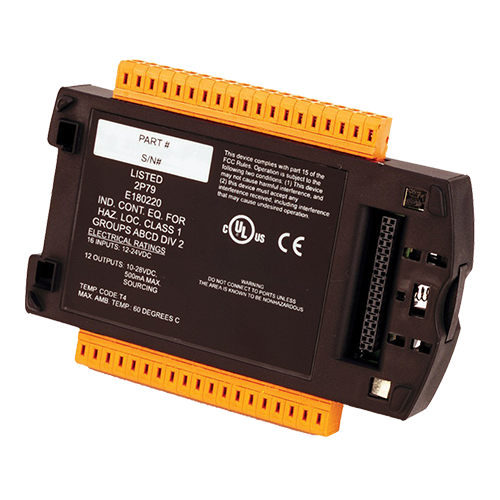

| DIQ716 | (12) 10-28 VDC | (16) 12-24 VDC | – | – |
| DIQ722 | (10) Relay 250 VAC / 30 VDC | (14) 120-160 VAC | – | – |

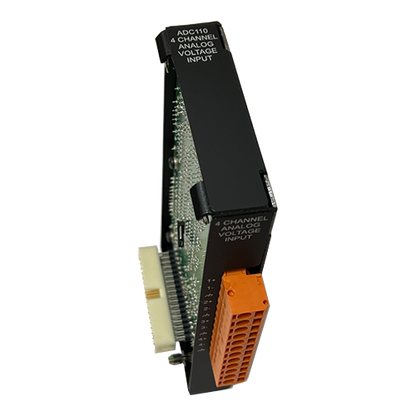

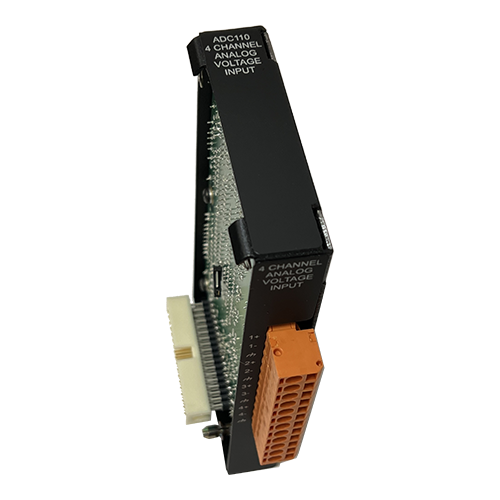

| ADC110 | – | – | – | (4) 12 bit ±10 VDC, ±5 VDC |

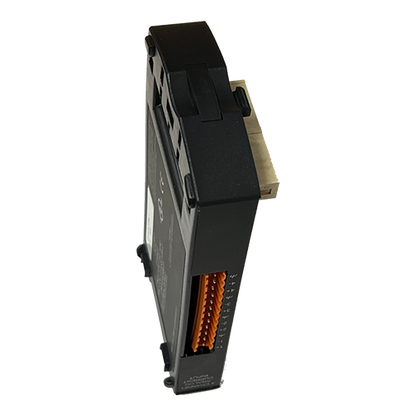

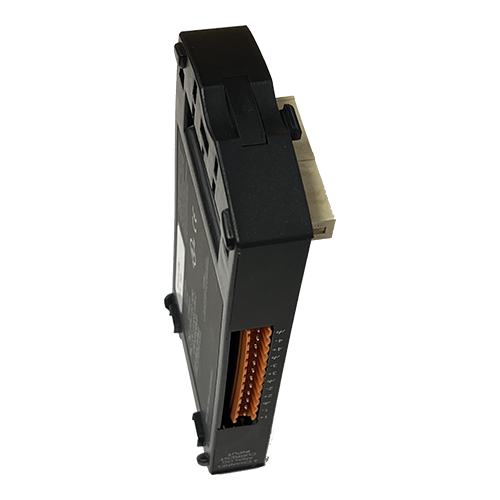

| ADC120 | – | – | – | (4) 12 bit ±20 mA |

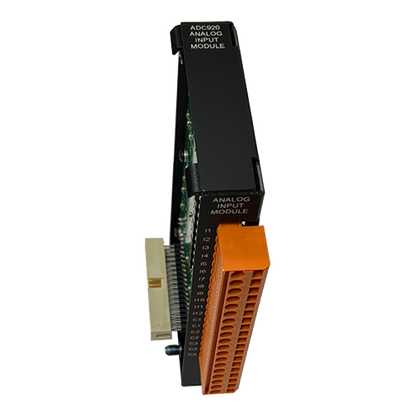

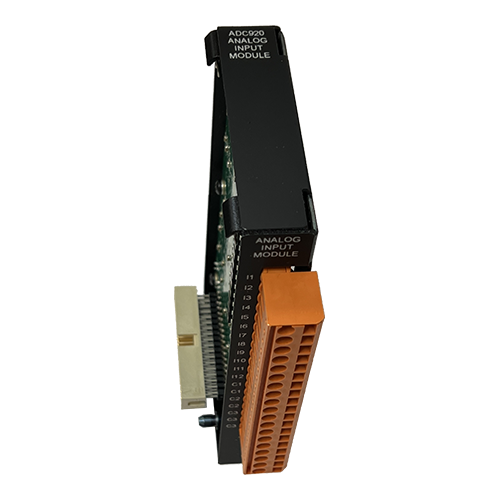

| ADC920 | – | – | – | (12) Thermistor -35 to 240˚F (-37 to 115˚C), 0-20 mA, 0-5 VDC |

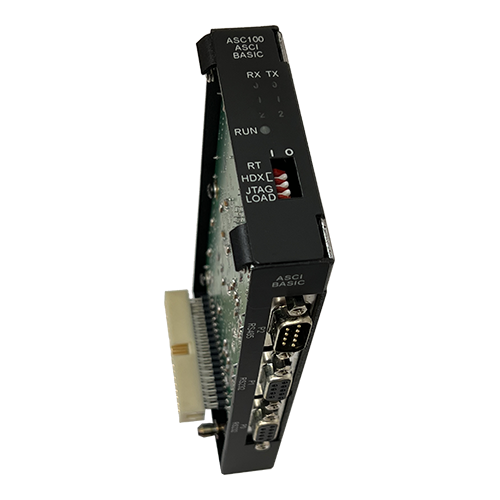

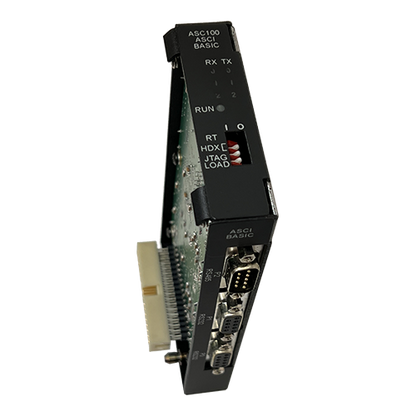

| ASC100 | (2) RS232, (1) RS485/422 | – | – | |
| DAC106 | – | – | (4) 14 bit 0-20 mA | – |
| DNM650 | (1) DeviceNet Master | – | – | – |
| HSC600 | (8) High Speed Out 5-35 VDC | (8) HSC .1-16 VDC Configurable | – | – |
| MIX902 | (8) 10-28 VDC | (8) 12-24 VDC | (2) 12-bit 0-20 mA | (4) 12-bit 0-20 mA |
| PBM650 | (2) Profibus Master | – | – | – |
| RTD100 | – | – | – | (4) .1˚C RTD (100, 200, 500, 1000 Ohms at 0˚C, Platinum, Alpha 0.00385, DIN43760) |
| THM100 | – | – | – | (4) .05˚C Thermocouple (J, K, T, E, C, R, S) |

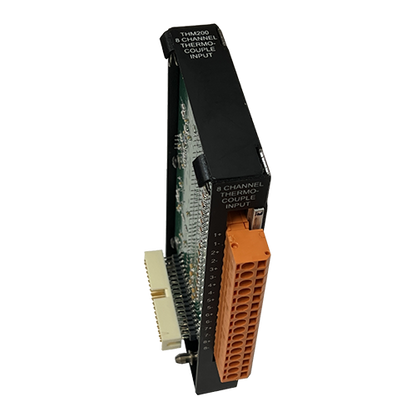

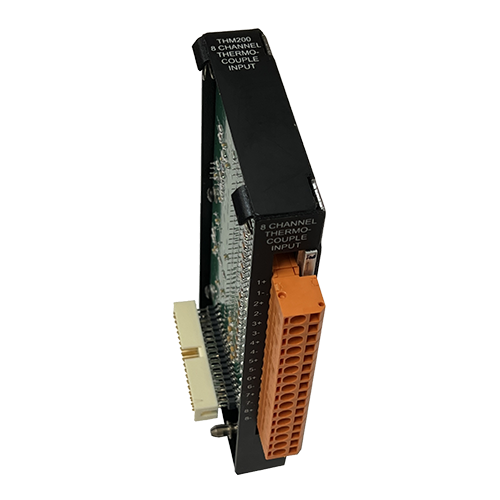

| THM200 | – | – | – | (8) .05˚C Thermocouple (J, K, T, E, C, R, S) |
