The HE-XRC9, from Horner Automation, is no longer in production. It's recommended to consider our line of products from Teltonika for industrial ethernet solutions.
Wireless Industrial Modem HE-XRC

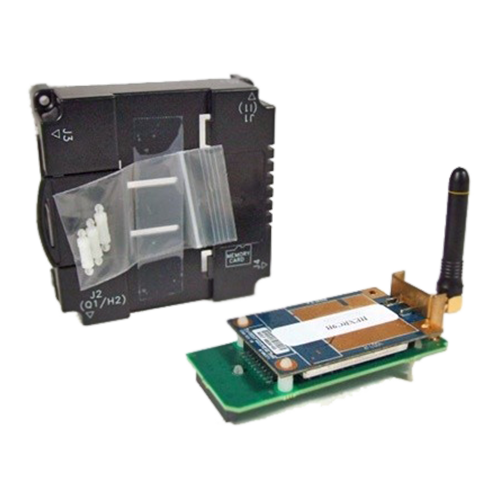

The 900MHz Industrial Modem, HE-XRC9, is a wireless industrial modem that's available as an add-on internal option for the XLE Series and XLT Series. It is our longest range wireless solution. Out-of-the-box, this modem can sustain long range wireless links between devices. Simply enter serial data into one modem and the data surfaces on the other side of the wireless link. With application setup, the XRC9 supports multipoint (>3 nodes) functionality. An articulate 1/2-wave dipole RPSMA antenna (2.1db gain) comes with the HE-XRC9.
- long range wireless solution, equipped to sustain long range wireless links between devices
- FHSS (Frequency Hopping Spread Spectrum)
- easy to use, no configuration necessary
- keeps communications secure with 256-bit AES encryption
- easy to install, simply remove 4 case screws and snap the board in
Performance Data for the HE-XRC9
| Performance | @ 9600 bps Throughput Data Rate | @ 115200 bps Throughput Data Rate |
|---|---|---|
| Transmit Power Output | 1 mW - 1 W (software selectable) | 1 mW - 1 W (software selectable) |
| Indoor / Urban Range | Up to 3000 feet (900 m) | Up to 1500 feet (450 m) |
| Outdoor RF Line-of-Sight Range with Dipole Antenna | Up to 14 miles (22 km) | Up to 7 miles (11 km) |
| Outdoor RF Line-of-Sight Range with High-Gain Antenna | Up to 40 miles (64 km) | Up to 20 miles (32 km) |
| Interface Data Rate (selectable using BD Command) | 1200 to 230400 bps | 1200 to 230400 bps |
| RF Data Rate | 10000 bps | 125000 bps |
| Receiver Sensitivity | -110 dBm | -100 dBm |
Other Details not Available
