The Micro OCS Series, from Horner Automation, is considered "mature" and will soon no longer be in production. We recommend considering the newest models, the XL7 Prime and the Horner Canvas 7, or additional 7" models, the Horner Canvas 7D.

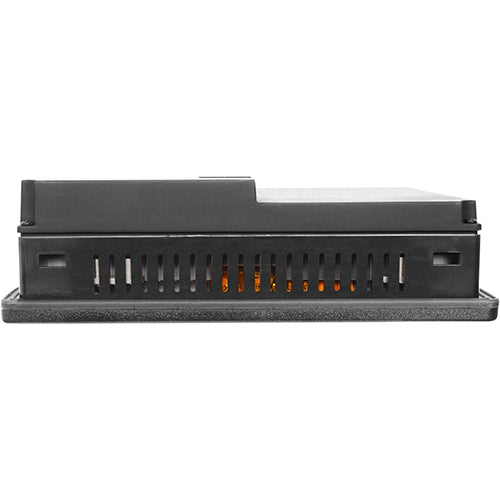

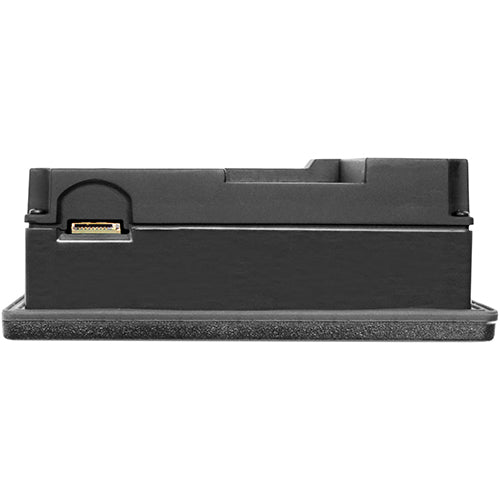

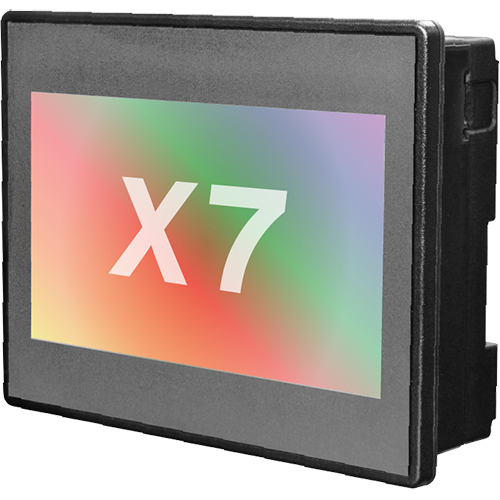

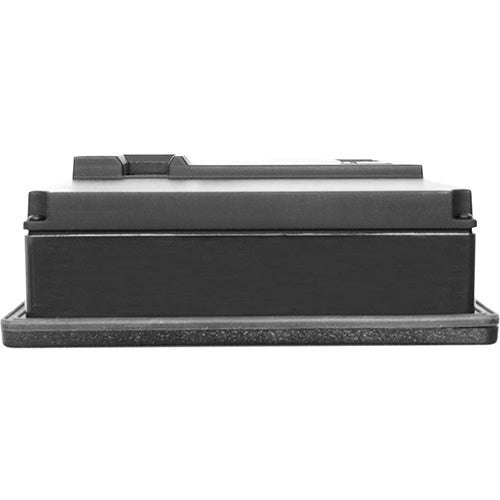

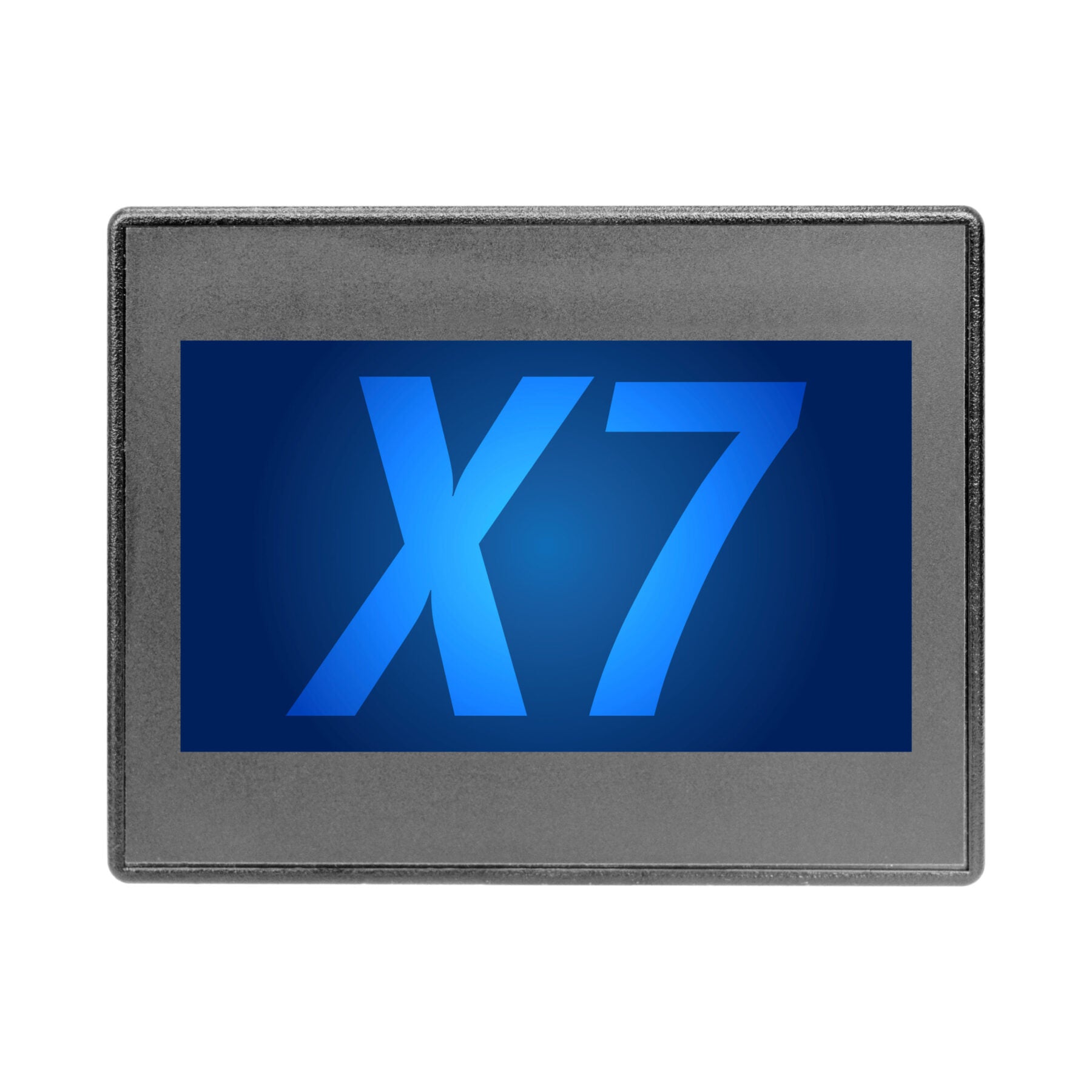

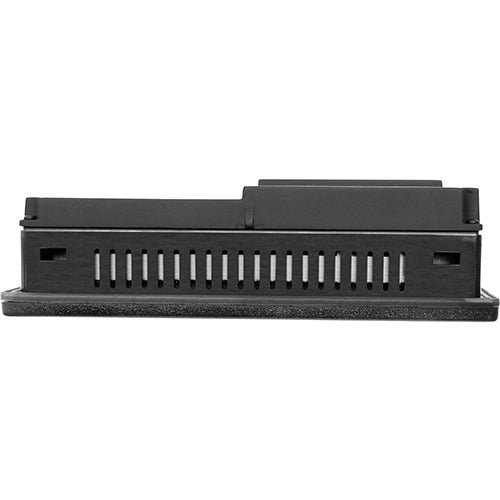

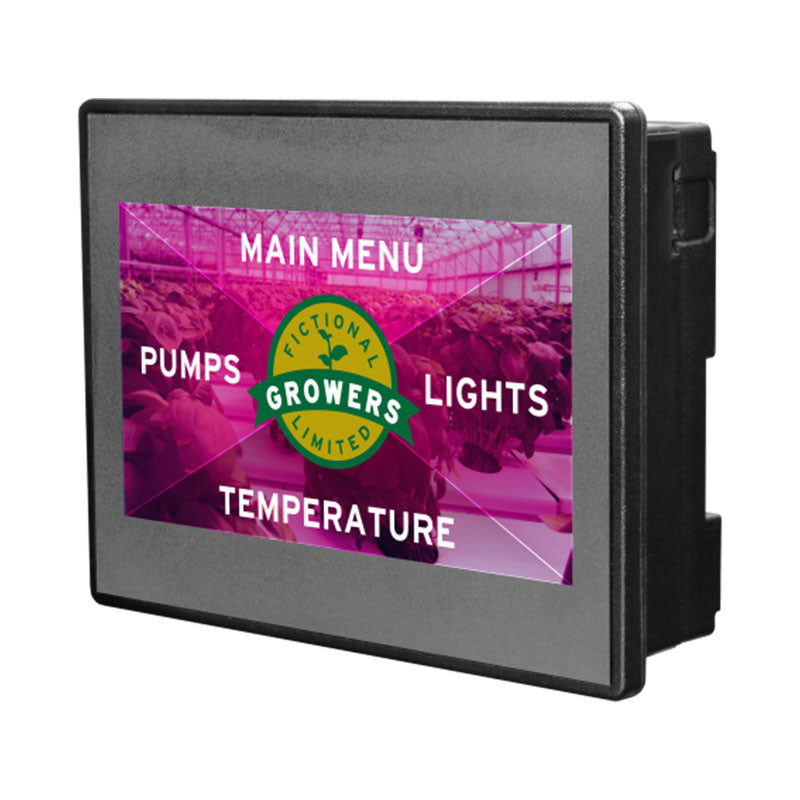

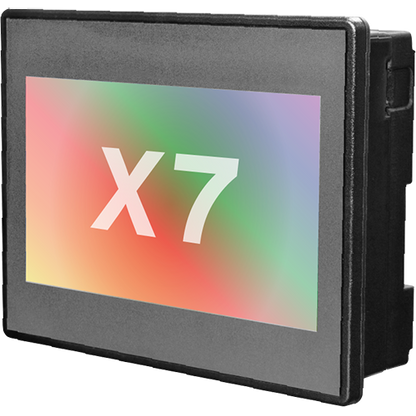

X7 Touch Screen HMI with built-in PLC and I/O
With the addition of the X7 touch screen HMI automation controller, our engineers at Horner Automation offer a slim, versatile, and also complimentary product to our existing line of robust industrial solutions. The X7, as an introductory piece, empowers organizations to grow by seamlessly incorporating additional Horner solutions (such as our more basic X2 Micro OCS controller as well as the new XL4 Prime controller) to your expanding system.

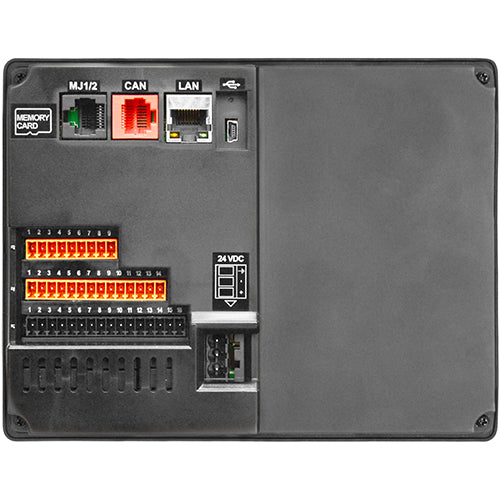

In an effort to make the latest Horner OCS controllers as widely applicable as possible, the X7 offers a streamline set of onboard I/O, thus supporting an impressive array of applications. Discrete manufacturing is well supported with 20-24 digital I/O points – including high-speed inputs and also outputs. Are your requirements process oriented? The X7 includes analog inputs and outputs, with support for 4-20mA signals as well as RTD temperature sensors. Furthermore, if the built-in I/O isn’t enough for your specific application – easily expand it via remote I/O options, Ethernet, CAN, Modbus, or RS-485.
Space-Saving X7 Touch Screen HMI Controller
The wide, sleek profile of the X7 enables users to fit more in the panel, saving space in addition to other resources. The X7 packs a big picture into an overall small package. With just a 6.9 x 5.2" cutout, this 7" wide aspect screen is very user-friendly as well as intuitive.
Applications of the X7 Touch Screen HMI Controller
Agriculture
- greenhouse automation
- enhanced resource management
Building Automation
- comprehensive system
- upgrade for obsolete controls
Material Handling
- minimize HMI inefficiencies
- track, log, as well as catalog data
Renewable Energy
- data logging and also remote access
- sunlight and UV protection
Water and Wastewater
- station pump control
- remote water well controls
Oil and Gas
- maximize capacity utilization
- maintain emission standards
Standard Models of the X7 Touch Screen HMI
| Built-In I/O | Model A (HE-X7A) | Model R (HE-X7R) |
|---|---|---|
| DC In | 12 | 12 |
| DC Out | 12 | 2 |
| Relays | – | 6 |
| HS In | 4 | 4 |
| HS Out | 2 | 2 |
| mA In | 4 | 4 |
| mA Out | 2 | 2 |
| Note: There are four high-speed inputs of the total DC Inputs. There are two high-speed outputs of the total DC outputs. | ||
| Note: Model A - supports sourcing outputs. Model R - DC outputs are sinking with integral pull up resistors. |
||
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|
| -441 | WebMI Unlimited License pre-loaded |
| -443 | CANopen License pre-loaded; also removes CsCAN. |
| -444 | BACnet IP / MSTP License pre-loaded |
| NOTE: Lead time on special order products is typically 4-6 weeks. | |
