The Micro OCS Series, from Horner Automation, is considered "mature" and will soon no longer be in production. We recommend considering newer, similar style models such as the XLE Series and XLT Series, or additional 4" models, the XL4 Prime and the Horner Canvas 4.
Compact, Sleek Physical Design

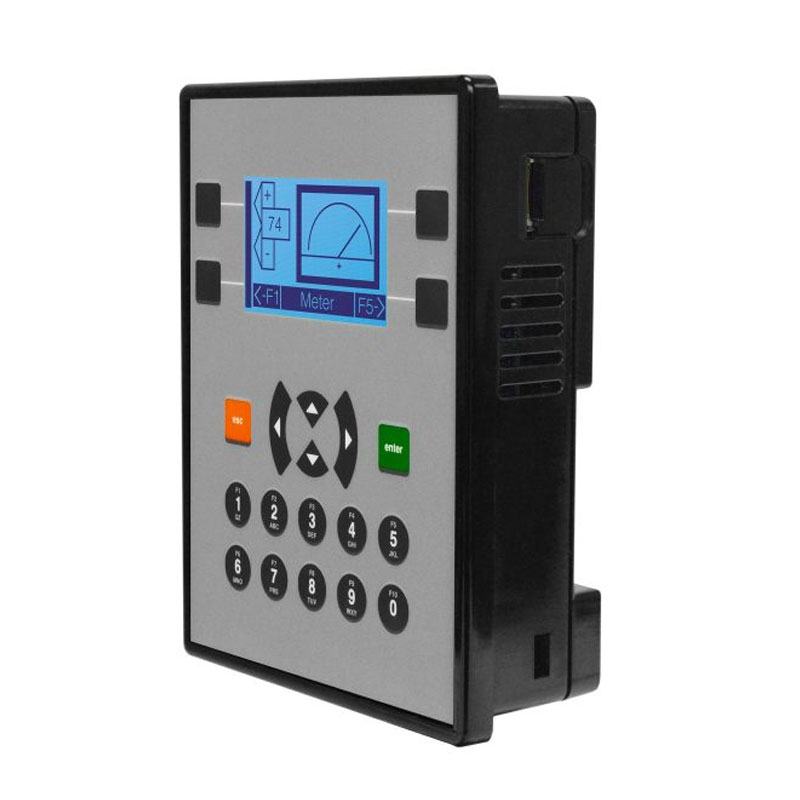

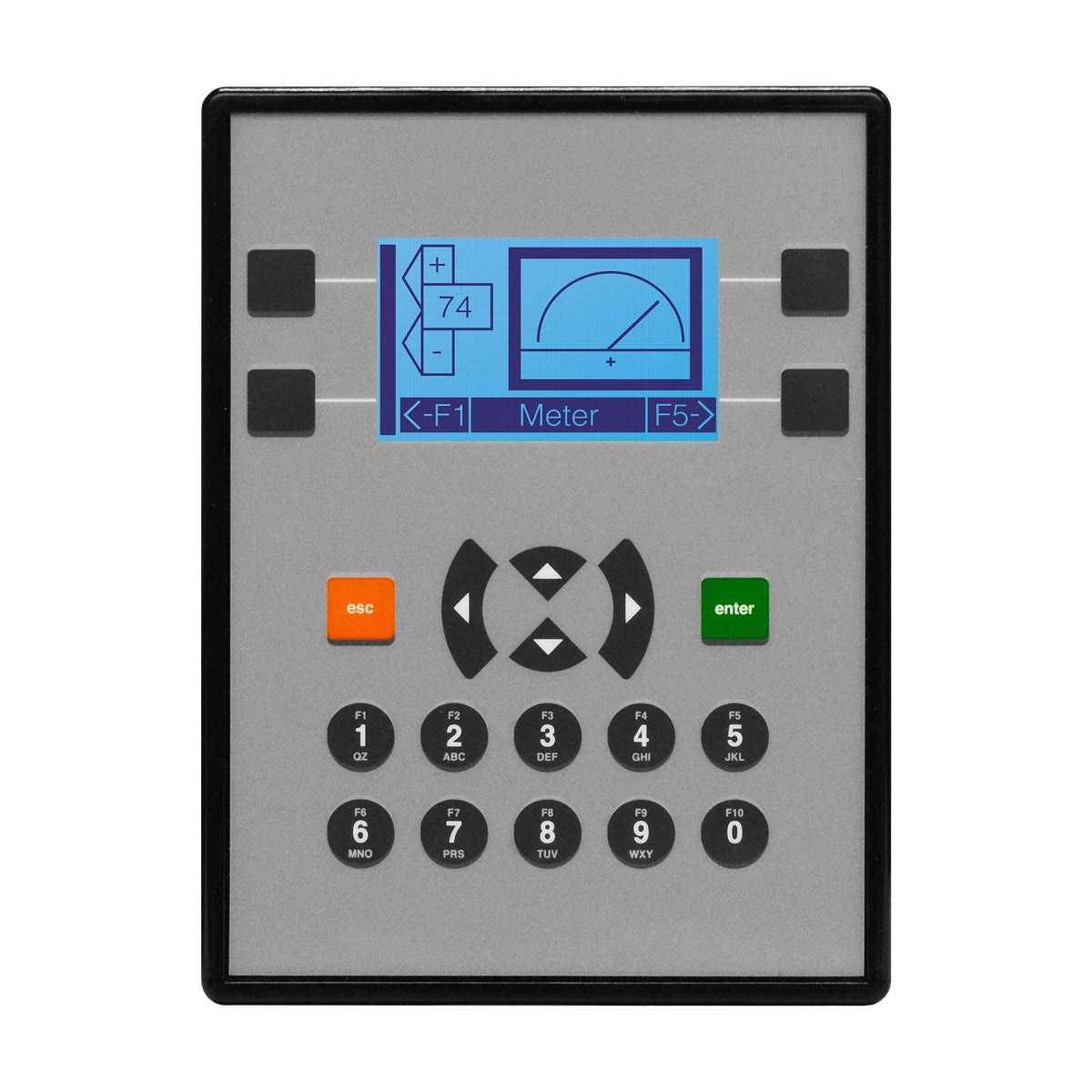

With fully integrated hardware and software, the X2 automation controller, from Horner Automation, offers easy programming, installation, development, as well as set-up. This automation controller has a small footprint and can easily retrofit into an existing system with little effort. Furthermore, our Micro OCS products do not have limits to their on-board I/O and many variations of remote I/O, such as the new OCS-I/O can connect via CsCAN, Ethernet, or Modbus. RTU/Modbus based SmartMod I/O is also a cost-effective means of adding a small amount of analog I/O.

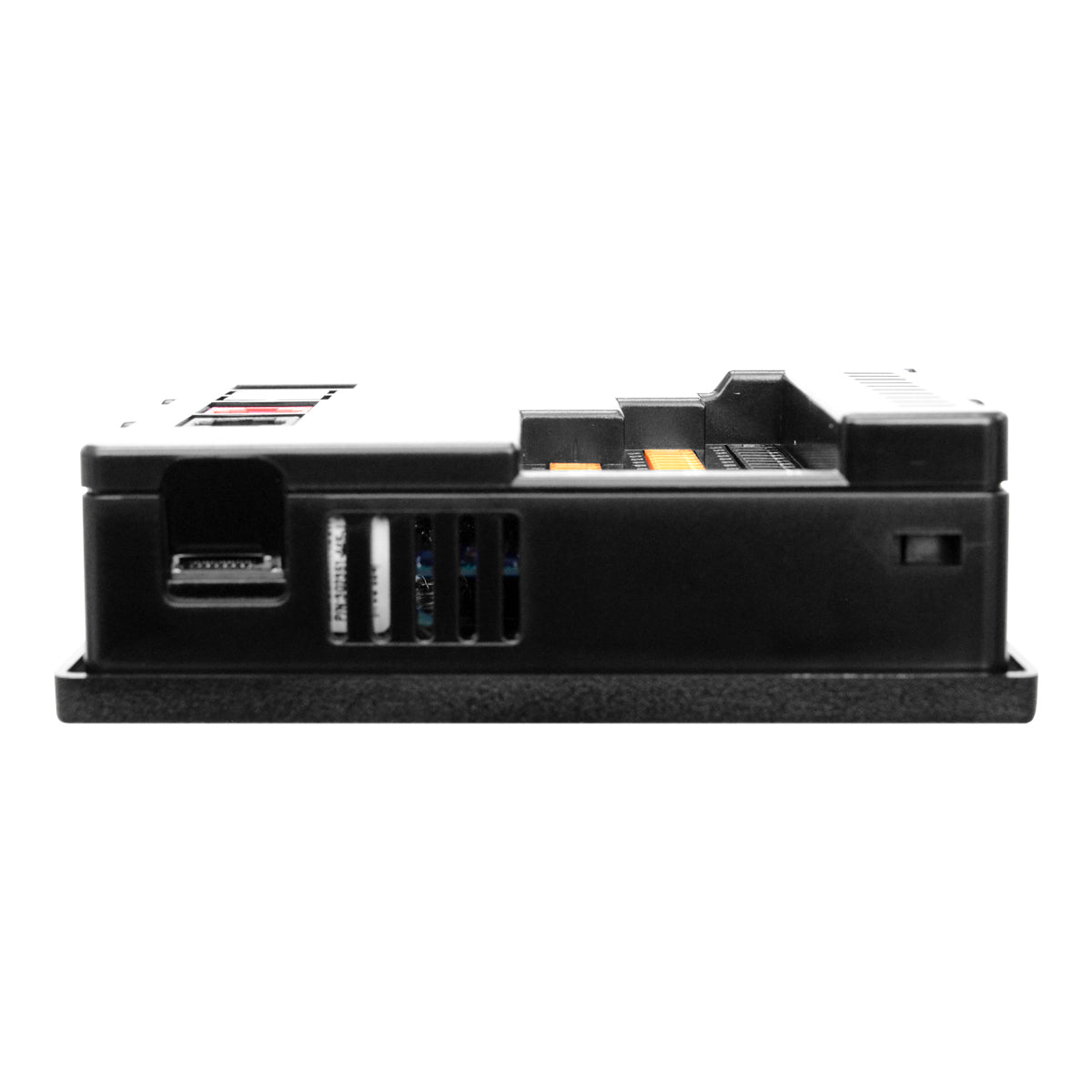

The small, sleek profile of the X2 all-in-one automation controller enables users to fit more in a panel, saving space as well as resources. For an introductory product, the X2 packs a big picture into an overall small package. For example, with just a 4.6 x 3.5" cutout, the overall design of the Micro X2 is powerful, reliable, and also durable.
All-in-One Automation Controller with Embedded I/O

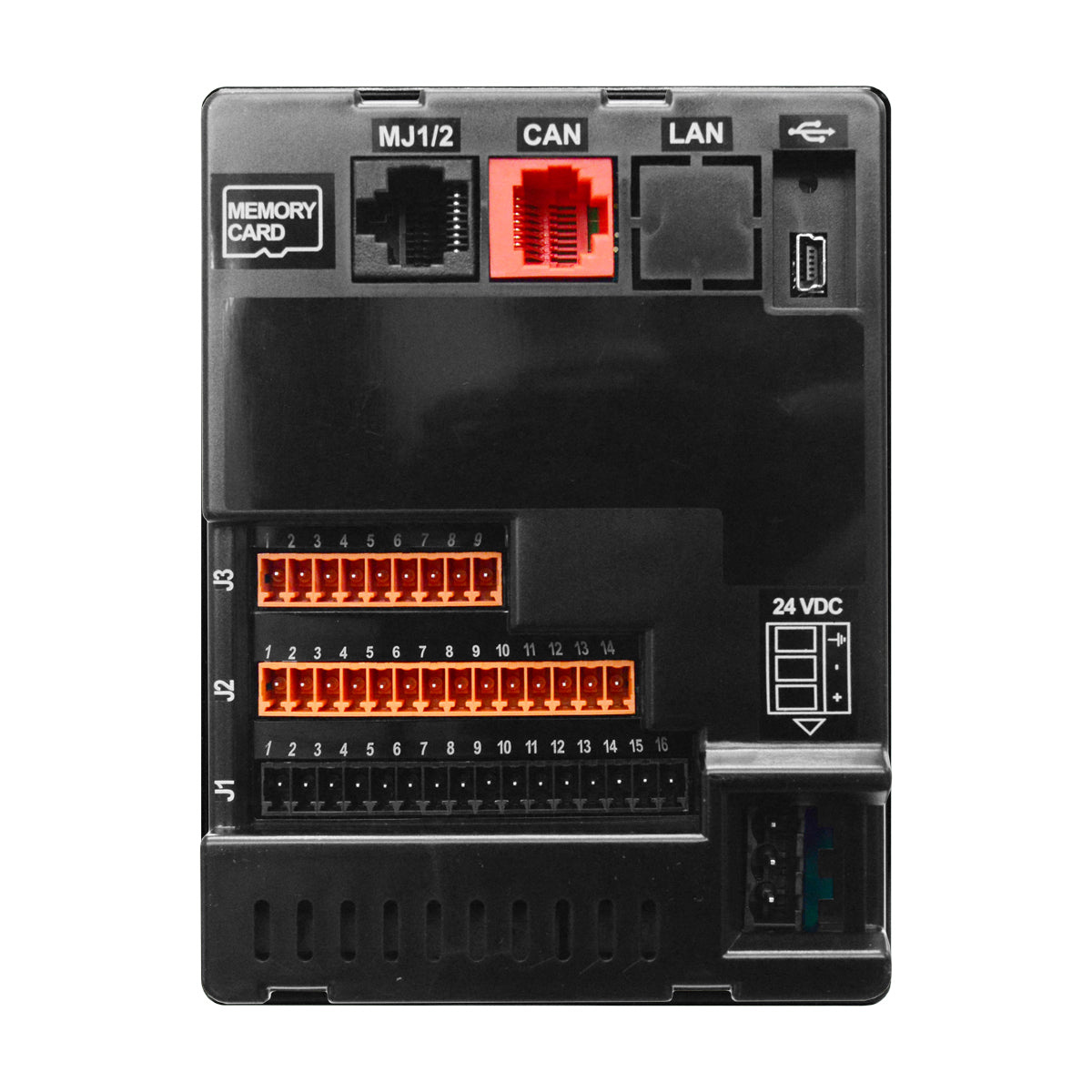

In an effort to make implementing Horner OCS controllers as seamless and user-friendly as possible, we have selected a streamlined set of on-board I/O. The wide scope of digital and analog I/O make automating your applications, and thus your organization, as simple as the push of a button. Furthermore, if the built-in I/O of the X2 isn’t enough for a specific application, user can easily expand via CAN or serial.
Competitive Advantage
With the X2 Micro OCS controller, our engineers at Horner Automation offer a slim, versatile, as well as complimentary product to our existing line of robust industrial solutions. The Micro X2, as an introductory piece, empowers organizations to grow by seamlessly incorporating additional Horner solutions (such as our more advanced, new XL4 Prime or our premium X5 Prime OCS controllers) to an expanding system.
Applications of the X2 Micro OCS Series Embedded I/O Controller
Agriculture
- reduce energy consumption
- increase overall productivity
Building Automation
- improve occupant comfort
- economical operation systems
Material Handling
- minimize HMI inefficiencies
- track, log, and also catalog data
Renewable Energy
- data logging as well as remote access
- sunlight and UV protection
Water and Wastewater
- station pump control
- remote water well controls
Oil and Gas
- maximize capacity utilization
- maintain emission standards
Standard Models of the X2 Automation Controller
| Built-In I/O | Model A (HE-X2A) | Model R (HE-X2R) |
|---|---|---|
| DC In | 12 | 12 |
| DC Out | 12 | 2 |
| Relays | – | 6 |
| HS In | 4 | 4 |
| HS Out | 2 | 2 |
| mA In | 4 | 4 |
| mA Out | 2 | 2 |
| Note: There are four high-speed inputs of the total DC Inputs. There are two high-speed outputs of the total DC outputs. | ||
| Note: Model A - supports sourcing outputs. Model R - DC outputs are sinking with integral pull up resistors. |
||
