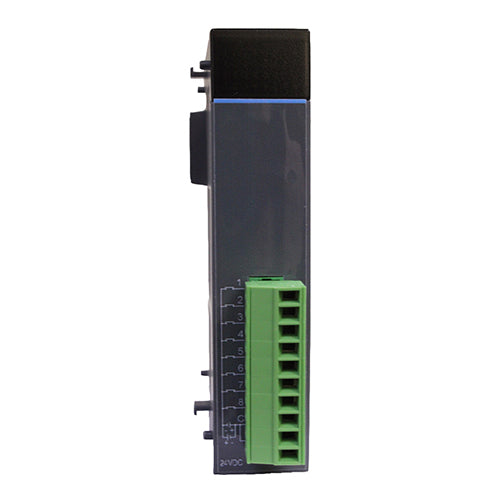

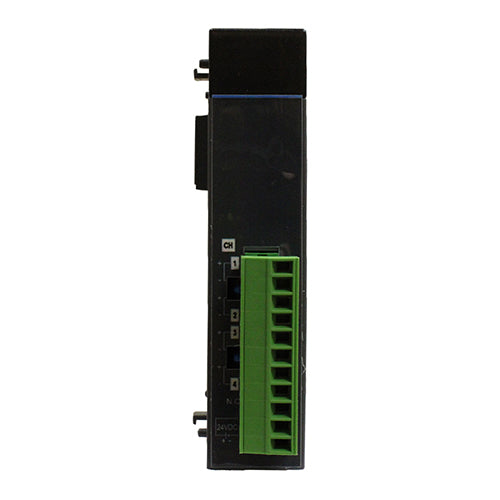

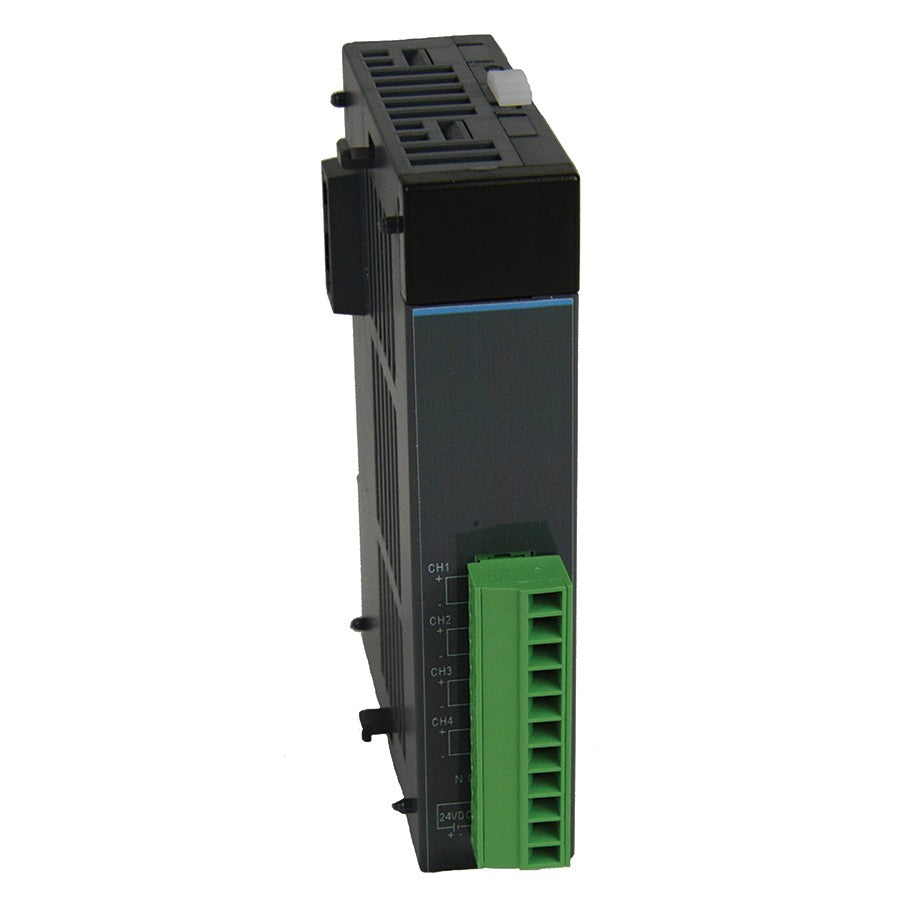

SmartRail I/O Expansion for HMI Controllers

SmartRail I/O expands the input / output capacity of Horner OCS All-in-One controllers. SmartRail uses fieldbus technology and can be installed locally or hundreds of meters away. Highly expandable and scalable with several communication base options, SmartRail modular I/O allows for granular digital and analog input / output configurations to suit any specification without wasted space or hardware cost. Multiple SmartRail I/O Bases can be used – limited only by the performance requirements of the application. SmartRail Ethernet I/O is compatible with any OCS controller with built-in Ethernet.

local expansion I/O or remote I/O up to 500 meters away
expand to 8 modules per base and 16 bases per network
screw-type terminals, standard spring-clamp style optional
flexible fieldbus selection: CsCAN, Ethernet, CANopen, Profibus

New Product Announcement
Some modules in the SmartBlock I/O Series, from Horner Automation, are considered "mature" and will soon no longer be in production. We recommend considering the Horner OCS-I/O for new users and new applications in need of remote Input / Output.

$414.00 USD

Sale Sold out

SKU:HE599CNX100

Quantity

View full details

Some modules in the SmartBlock I/O Series, from Horner Automation, are considered "mature" and will soon no longer be in production. We recommend considering the Horner OCS-I/O for new users and new applications in need of remote Input / Output.

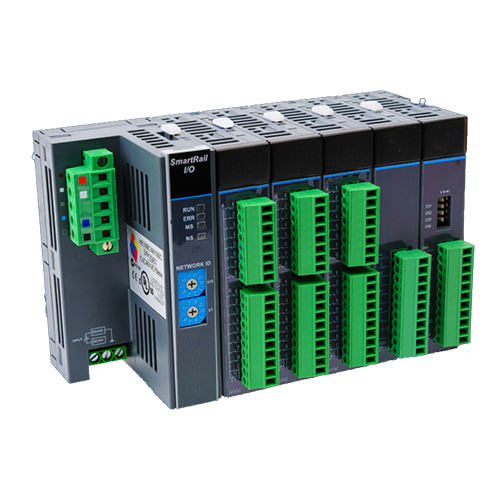

SmartRail I/O Series from Horner Automation

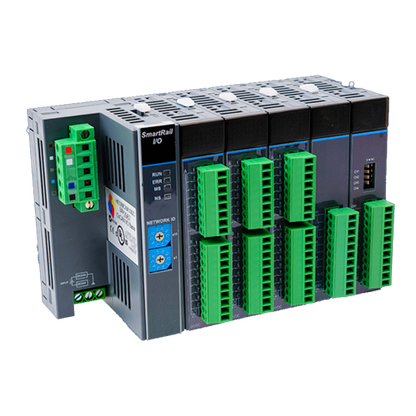

SmartRail I/O expansion modules are an input / output system for Horner automation controllers offering a choice of Fieldbus networks (CsCAN, Ethernet, CANopen, and Profibus). It is a flexible input / output system that can be applied as a local expansion I/O or remote I/O distributed over hundreds of meters. The SmartRail, from Horner Automation, is a compact I/O system - supporting 128 input / output points in a footprint of only 3.5H x 8.75W (in).

flexible Fieldbus selection
- CsCAN, Ethernet, CANopen, and also Profibus
local I/O expansion or remote input / output up to 500m away
expand to 8 modules per base, as well as 16 bases per network
screw-type terminals, standard spring-clamp style optional

SmartRail is Easy to Configure

SmartRail gives you the benefit of Fieldbus I/O with much less complex configuration. This modular I/O is easily configured using Cscape programming software. Just select your I/O base - and then start adding I/O modules. Cscape even calculates I/O power usage for you automatically - so you’ll never overload an I/O base.

Common Uses of SmartRail I/O Expansion from Horner Automation

manufacturing, for example: custom OEM products, food processing, automotive parts
power management, back-up generation, as well as HVAC and environmental control
semiconductor applications
mobile and packaging machinery
water treatment
pump, motion, compressor, and distributed conveyor control

Switch to Horner OCS-I/O

Horner-OCS-I-O-Remote-Input-Output-for-Automation-Control

The Horner OCS-I/O is a flexible, highly expandable Input/Output system that can be applied as a local expansion I/O or as remote I/O distributed over hundreds of meters. With expandability up to 7 modules per base as well as 16 bases per network, OCS-I/O can handle almost every Input / Output need. Additionally, it includes a CsCAN In and CsCAN Out port, which allows users to easily daisy-chain multiple bases without requiring extraneous custom wiring.

local expansion I/O or remote I/O up to 500 meters away
expandable with up to 7 modules per base and 16 bases per network
screw-type terminals standard; spring-clamp style optional
nine I/O modules to choose from, all with different I/O capabilities
compact design to allow easy installation into existing control systems
configures with easy-to-use, free Cscape programming software

Standard Models of the SmartRail I/O Expansion Series

Model ID	Configuration

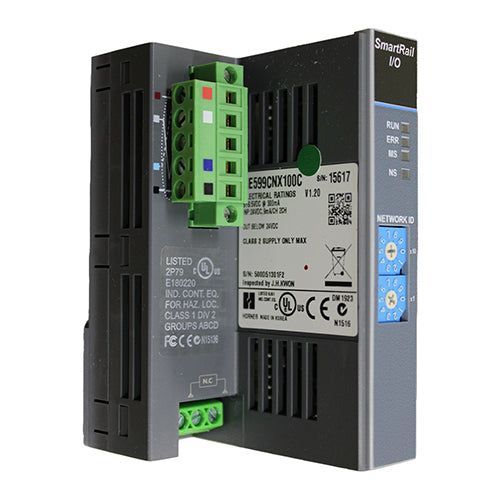

CNX100 (Base)	CsCAN Base. Compatible with all XL series, NX, QX, RX, RCX, and ZX; standard CsCAN bandwidth (1x), thus supporting up to 500m network distance.
CNX100-1MB (Base)	SmartRail CsCAN I/O Base - 1MB version; for larger systems as expansion I/O, with 8x normal CsCAN bandwidth, but limited to 25m distance; not for XLE Series and XLT Series.

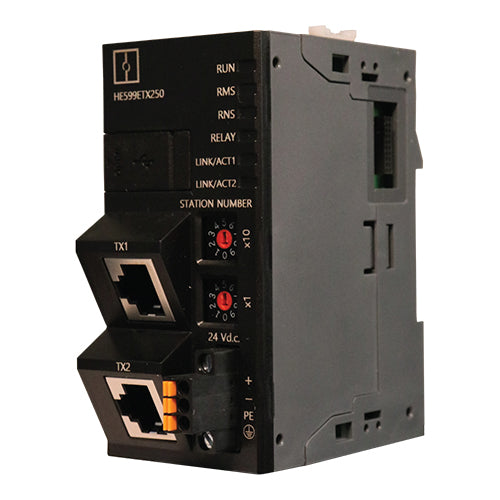

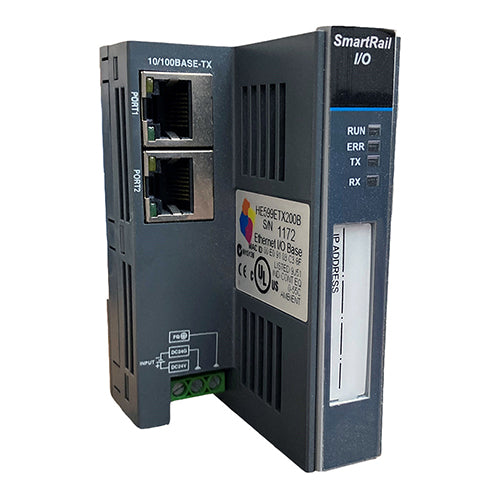

ETX250 (Base)	SmartRail Ethernet I/O Base with Modbus TCP and EtherNet/IP support; features built-in unmanaged switch; supports up to 8 I/O modules drawing up to 1.5A @ 5VDC; also supports up to 256 digital and 32 analog I/O per base.
COS100 (Base)	CANopen Base; compatible with all XL Series Controllers with CANopen Firmware.

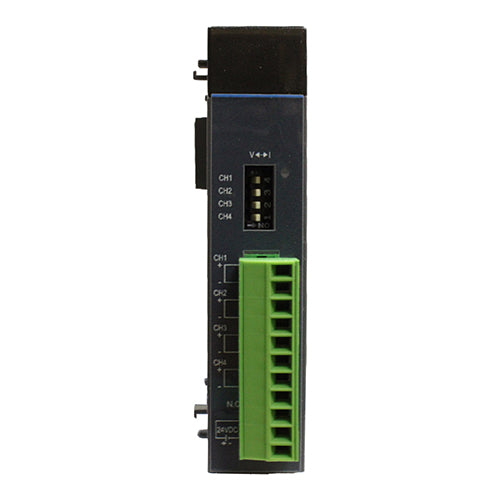

HE599ADC170*	4 channel Analog Outputs, 12-bit. Supports 0-10V.

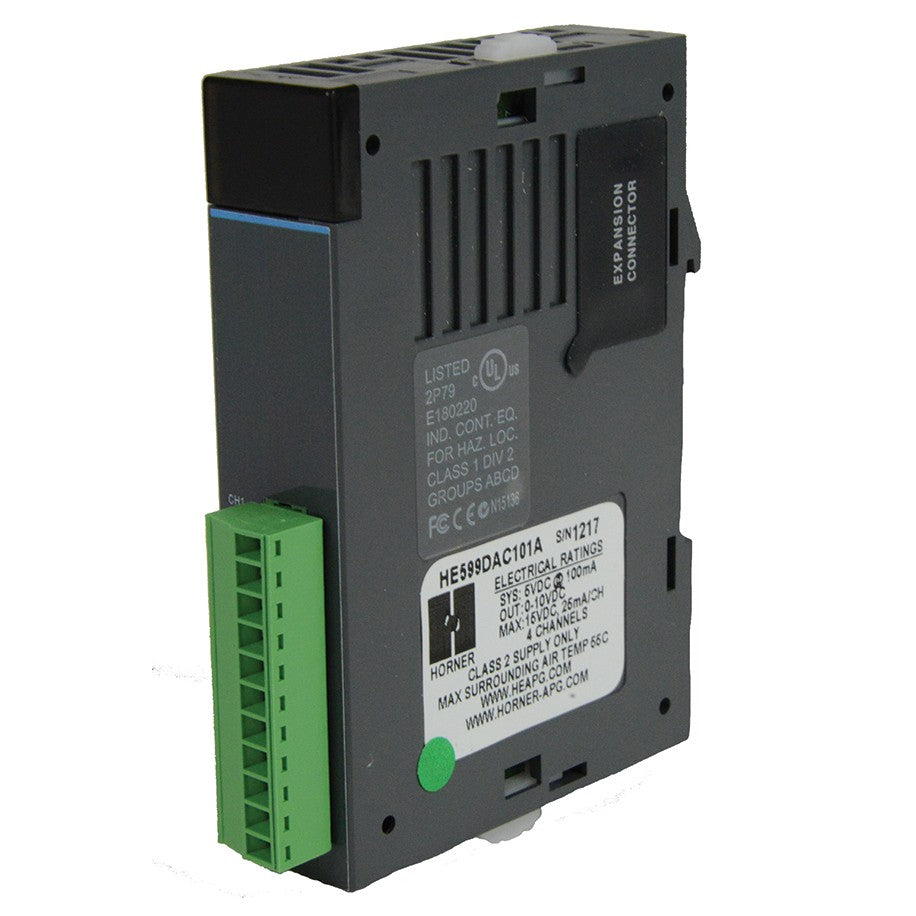

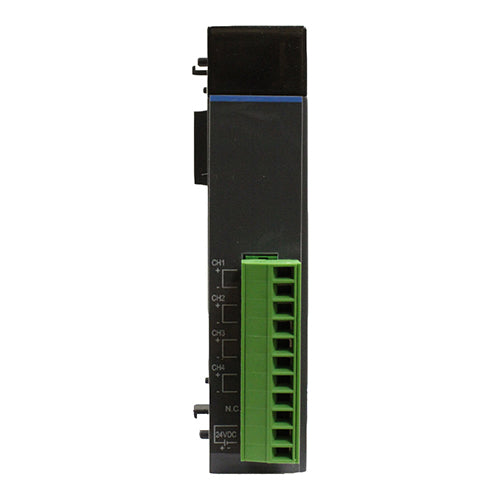

HE599DAC106*	4 channel Analog Outputs, 12-bit. Supports 0-20mA, 4-20mA.
HE599DIM510*	8 DC Inputs (24VDC pos/neg logic).

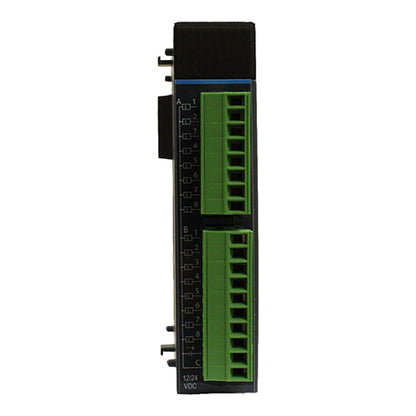

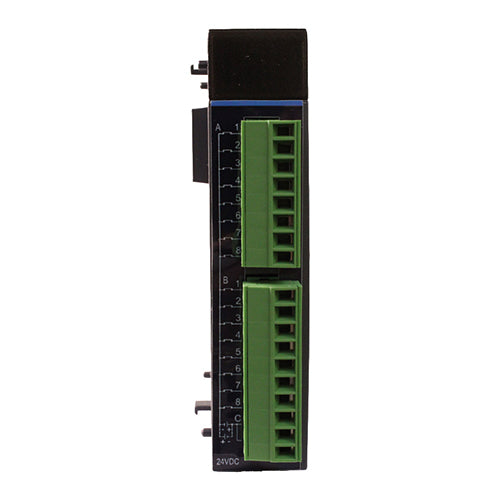

HE599DIM610*	16 DC Inputs (24VDC pos/neg logic).

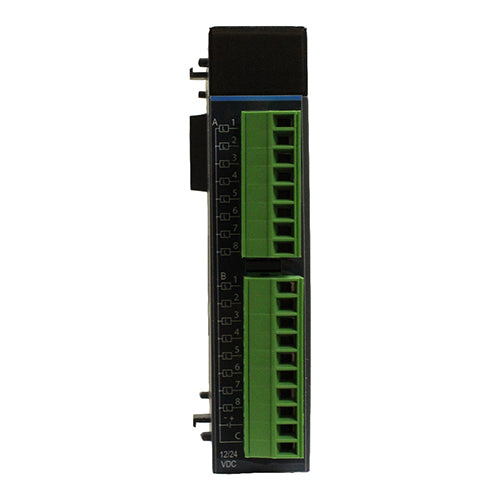

HE599DIM610-03*	16 DC Inputs (12VDC pos/neg logic).

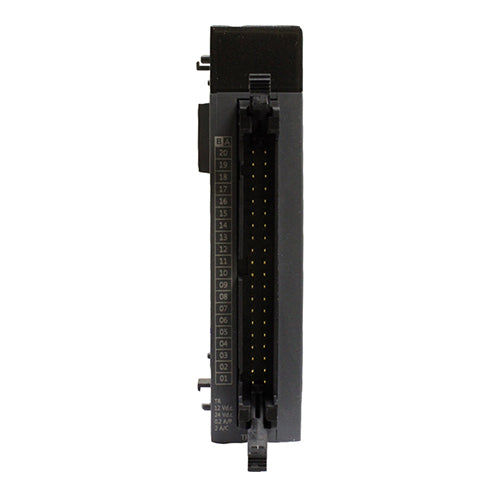

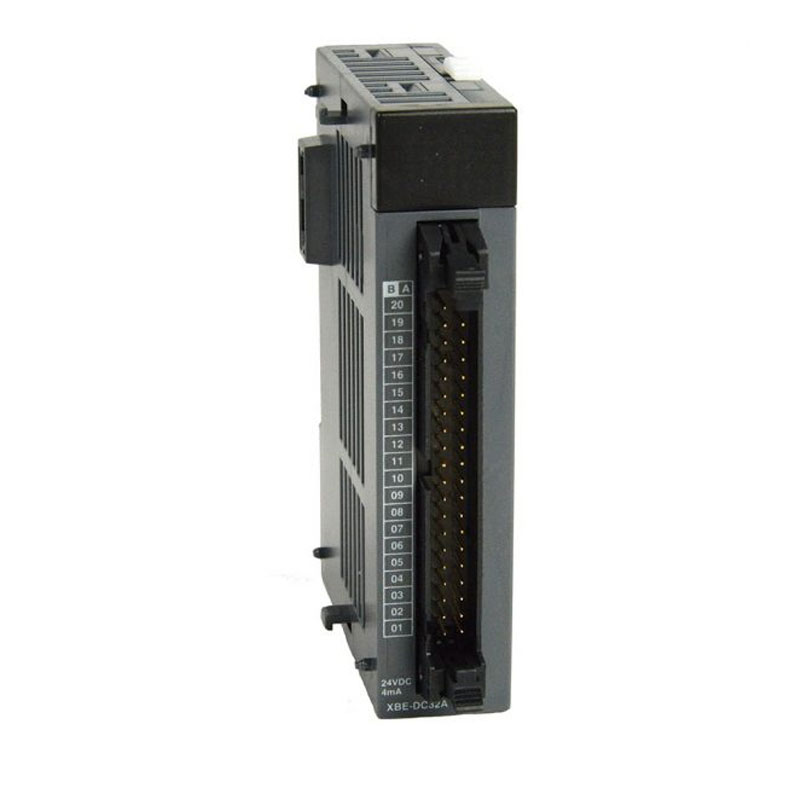

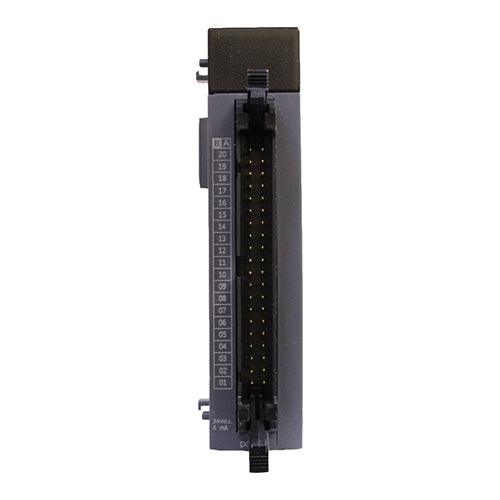

HE599DIM710	32 DC Inputs (24VDC pos/neg logic). SmartLink Terminal Strip (HE599TRM040) and Expansion Cable (HE599CBL040 - 0.5m or HE599CBL240 - 2.0m) required.
HE599DIQ512*	8 DC Inputs (24VDC, pos/neg logic). 8 Relay Outputs (2A).
HE599DQM502*	8 Relay Outputs (125VDC or 250Vac), 2A.
HE599DQM506*	8 DC Outputs (24VDC, pos logic, 0.5A).
HE599DQM602*	16 Relay Outputs (125VDC or 250Vac), 2A.
HE599DQM606*	16 DC Outputs (24VDC, pos logic, 0.5A).
HE599DQM706	32 DC Outputs (24VDC, pos logic, 0.2A). Recommend SmartLink Terminal Strip (HE599TRM040) and Expansion Cable (HE599CBL040 - 0.5m or HE599CBL240 - 2.0m) OR SmartLink Relay Output Strip (HE599RLY037) and Expansion Cable (HE599CBL037 - 0.5m or HE599CBL237 - 2.0m).
HE599MIX116*	2 channel Analog Inputs + 2 channel Analog Outputs. 12-bit resolution, channel-by-channel selectable for 0-20mA, 4-20mA, 0-10V.

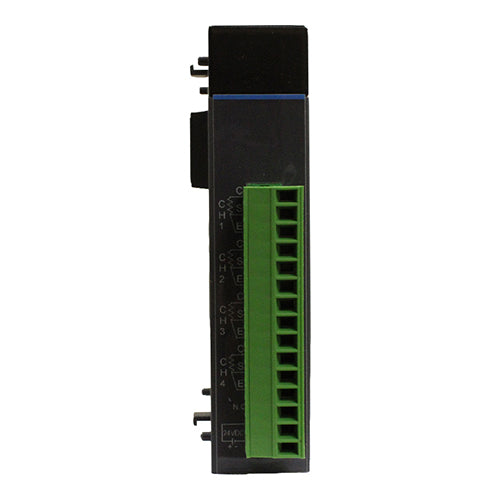

HE599RTD100*	RTD Inputs - 4 channel, 0.1˚C. Supports Pt-100.
HE599THM100*	Thermocouple Inputs - 4 channel, 0.1˚C (typical). Supports J, K, T, R.
Note: A SmartRail Base is required to use SmartRail Modules.
*Available with spring-clamp terminals - contact us to order.
