XL4 Series PLC Touch Screen

The XL4 sets the standard for functionality and performance. All XL4 automation controllers feature a built-in logic engine, operator interface, and networking.

Full Ethernet Built into Every Unit
The XL4 model has built-in 100Mbps Ethernet. The XL4 Ethernet support includes an integrated Web Server, FTP Host, email, Modbus/TCP, programming, and much more.

logic engine features 1MB of application memory with a 0.013mS/K logic scan
supports online programming mode for making logic changes on the fly without going thru stop mode

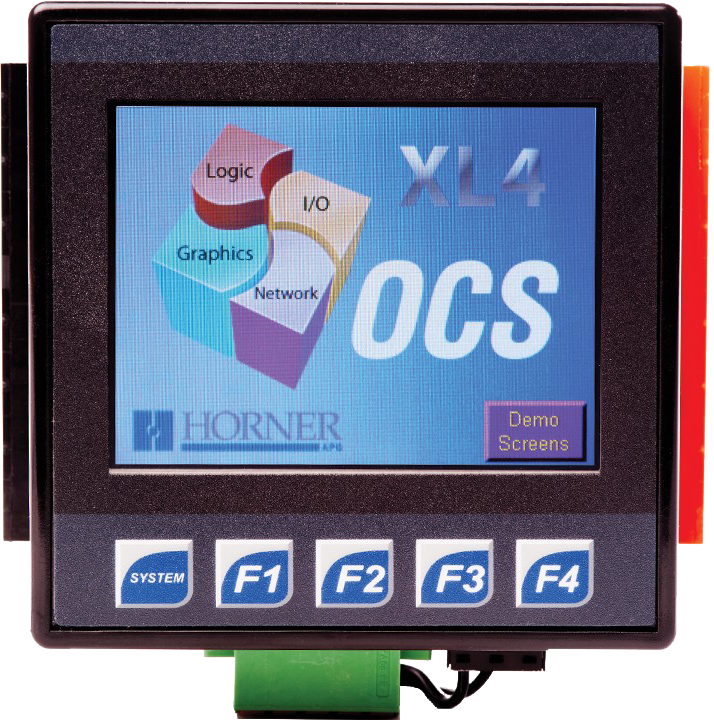

operator interface features include a 320×240 LCD TFT color graphics display with a high resolution resistive touchscreen, 4 function keys, and a system key

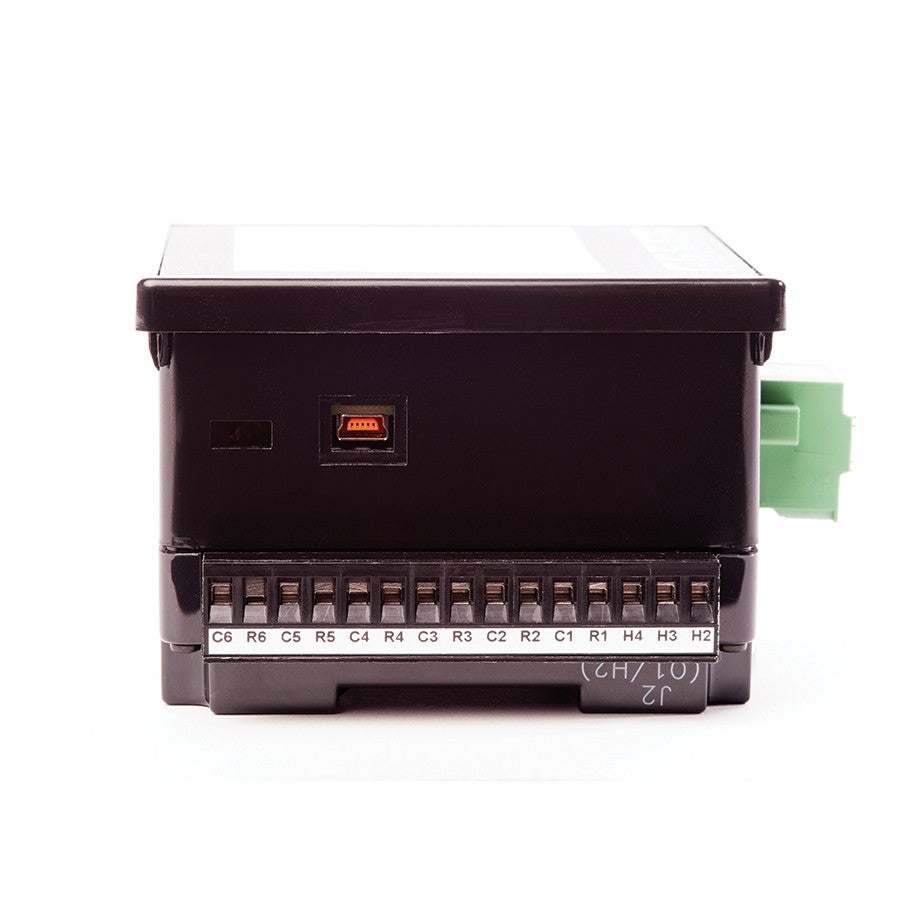

USB 2.0 On-the-Go port (mini-B 5pin) is available for programming
USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives
one (1) RS-232 and one (1) 485 port support RTU/Modbus Commander / Responder (Master / Slave), ASCII In/Out, and PLC/Drive downloadable protocols

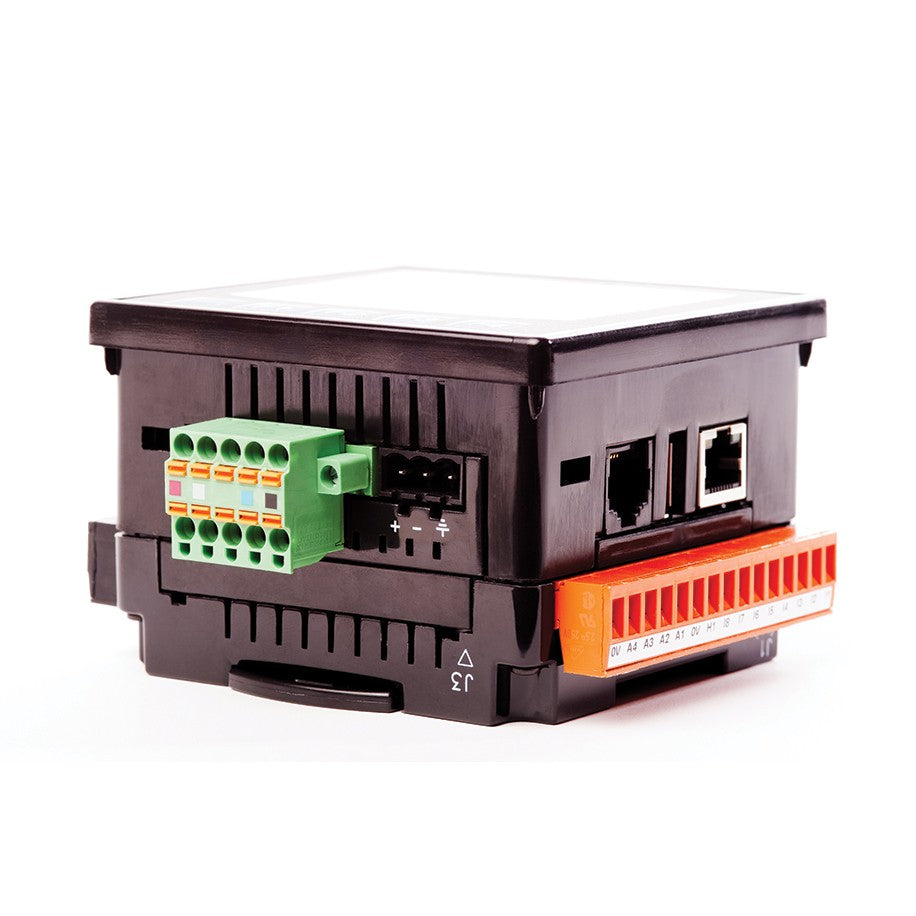

networking features include a built-in 10/100 Ethernet port, and an integrated CsCAN port

New Product Announcement
The XL4, from Horner Automation, is considered "mature" and will soon no longer be in production. We recommend considering the XL Prime Series or the Horner Canvas Series for new users and new applications.

$1,461.00 USD

Sale Sold out

SKU:HE-XC1E0

Quantity

View full details

The XL4 Series PLC Touch Screen automation controller, from Horner Automation, is considered "mature" and will soon no longer be in production. We recommend considering the new XL4 Prime, or additional 3.5" models: the XLE Series, the XLT Series, or the Horner Canvas 4.

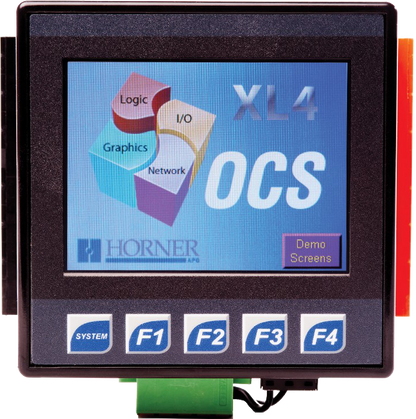

XL4 Series PLC Touch Screen Controller from Horner Automation

A milestone product setting the standard for functionality as well as performance. The XL4 PLC touch screen controller shares the same 1⁄4 DIN form factor as our extremely popular XLE Series as well as the XLT Series. The XL4 Series LCD TFT display is full color with QVGA resolution, thus providing virtually instantaneous updates.

high performance logic controller with online programming
3.5" QVGA color touchscreen for detailed graphics
built-in digital in addition to analog I/O with (2) 500kHz high-speed counters
10/100 Ethernet for e-mail, web serving, FTP, as well as Modbus/TCP
USB 2.0 ports for programming and also FLASH drive support

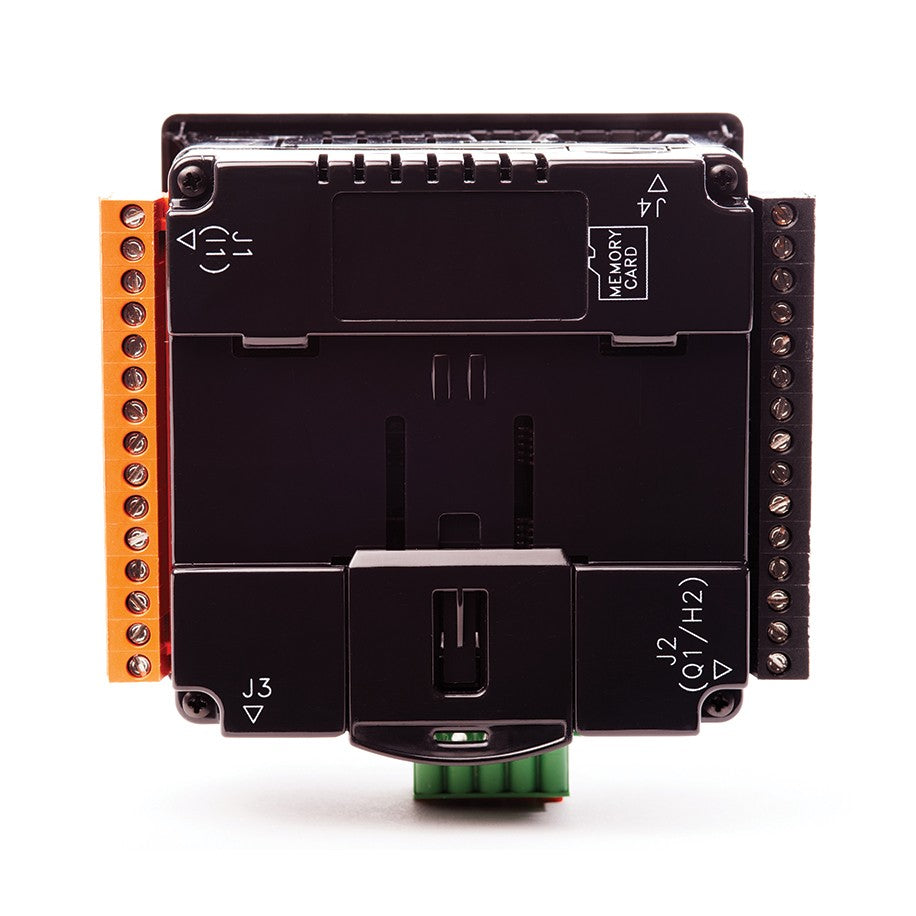

32 GB microSD slot for application updates and virtually unlimited data logging

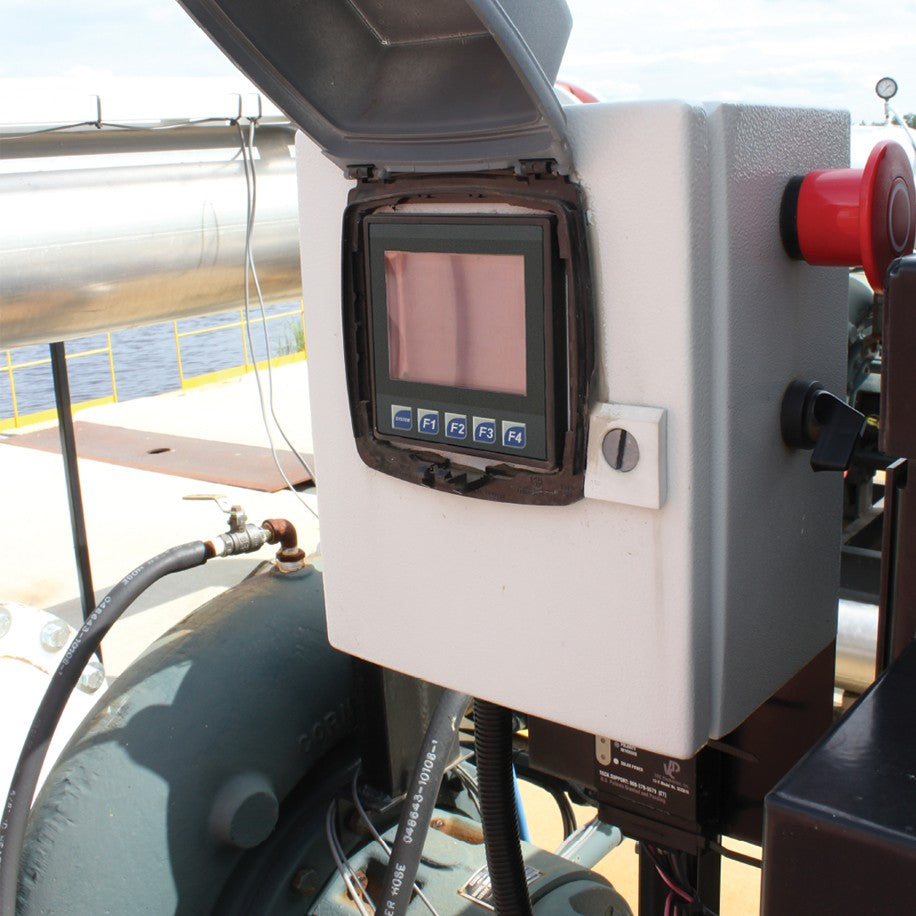

Common Applications for the XL4 PLC Touch Screen Controller

custom OEM products for example, food processing or automotive parts
power management and back-up generation
semiconductor applications
packaging machinery, mobile machinery
water treatment
compressor, pump, motion as well as distributed conveyor control
HVAC and environmental control

Advanced High Speed Counter (>5000KHZ), Data Logging, WebOCS

The 2-channel High Speed Counter accepts frequencies exceeding 500kHz to support multiple modes for example: totalizing, quadrature, pulse measurement, frequency counting, and setpoint controlled outputs. With Horner WebMI, users can monitor as well as control plant data from the palm of the hand. Publishing directly from the OCS Controller, WebMI allows the monitoring or control of the same or unique web pages from a computer, tablet, etc. Completely within our free Cscape environment, WebMI allows for state-of-the-art HTML5 development without the need for web programming skills.

All of our Horner OCS automation control products can quickly and also easily configure for data logging. It only takes a few steps within Cscape to set up the data and frequency with which data can be logged to the on-board microSD card. Utilizing the data is just as simple, for example: files can send via email, text, or even transfer (.csv) via FTP.

XL4-Horner-Automation-Controller-Programmable-Logic-Controls-Industrial-Automation-Controller-PLC-Process-Solutions-PSC-Texas

Standard Models of the XL4 PLC Touch Screen Controller

Model ID	Configuration
Model 0: HE-XC1E0	No built-in I/O
Model 2: HE-XC1E2	12 DC in, 6 Relay Out, 4 – 12-bit Analog In
Model 3: HE-XC1E3	12 DC in, 12 DC Out, 2 – 12-bit Analog In
Model 4: HE-XC1E4	24 DC in, 16 DC Out, 2 – 12-bit Analog In
Model 5: HE-XC1E5	12 DC in, 12 DC Out, 2 – 14/16-bit Analog In (mA/V/Tc/mV/RTD), 2 – 12-bit Analog Out
Model 6: HE-XC1E6	12 DC in, 12 DC Out, 6 – 14/17-bit Analog In (mA/V/Tc/mV/RTD), 4 – 12-bit Analog Out
All standard models and special order options (adders) are available for purchase through our online store. For additional assistance, please contact our sales team (281) 491-3833 or sales@psctexas.com for pricing, ordering, and lead time support.

Special Order Options (Adders)

Part Number Extension	Description
-10	Thermistor option; add -10 to the part number for thermistor support for analog inputs 1 & 2; available on models 2, 3, and 4 only.
-14	Thermistor option; add -14 to the part number for (4) channel thermistor support; available on model 2 only.
-22	With Display Heater.
-33	DeviceNet Master option; add -33 to the part number for DeviceNet Master Support (Polled & Explicit Connections only); CsCAN support is also removed.
-44	SAE J1939 option; add -44 part number extension for SAE J1939 communications; also removes CsCAN support.
-200	CANopen Firmware pre-loaded; CsCAN support is also removed.
-441	WebMI Unlimited License pre-loaded.
-442	Enhanced IEC License pre-loaded.
-445	MQTT License pre-loaded.
-602	Screw type I/O terminals; also removes spring type terminals; available on model 6 only.
-603	With Display Heater and Screw Type I/O Terminals; also removes spring type terminals; available on model 6 only.
NOTE: Lead time on special order products is typically 4-6 weeks.
