Horner Automation

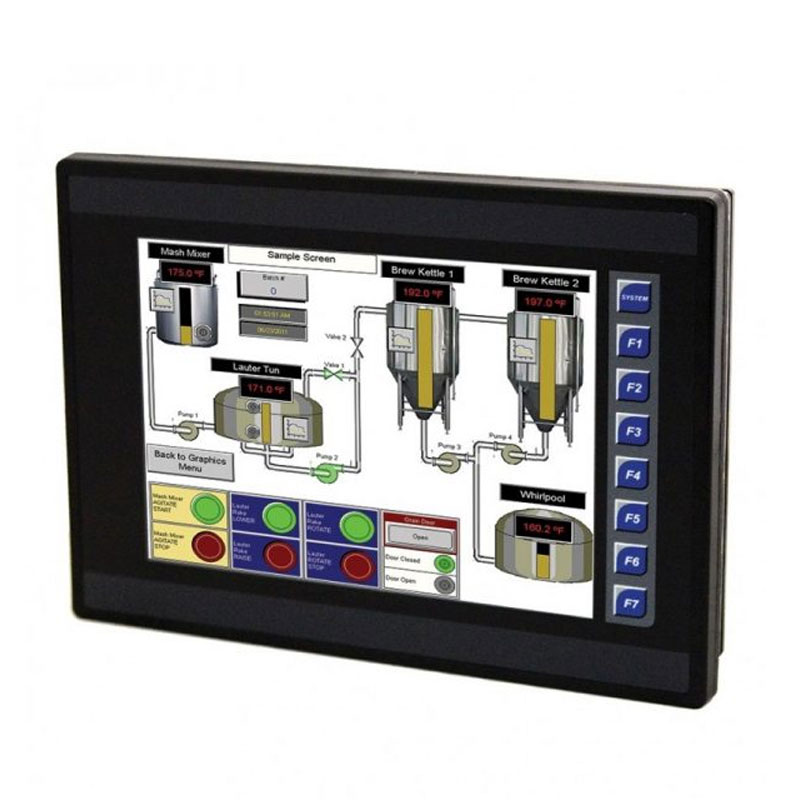

XL10e Automation Controller

Name: XL10e Automation Controller
Brand: Horner Automation
Availability: OutOfStock

XL10e Automation Controller

All XL10e automation controllers feature DC/Relay I/O, twelve (12) Digital Inputs compatible with 12V/24VDC - four (4) inputs can be used for 10kHz High-Speed Counting. Six (6) Relay Outputs - up to 5A continuous current. Four (4) 10-bit Analog Inputs selectable between 0-10V and 4-20mA

Product Replacement Recommendations
The XL10e, from Horner Automation, is no longer be in production. We recommend considering the XL Prime Series or the Horner Canvas Series for new users and new applications. View XL10 Prime View full details

This all-in-one automation controller, from Horner Automation, is no longer in production and has been replaced by the XL10 Prime. We also recommend considering the Canvas 10D or additional 10" HMI options including the XL10W Prime.

XL10e Controller from Horner Automation

All units feature a built-in logic engine, operator interface, networking, and I/O.
Logic engine features 256KB of application memory with a 0.2mS/K logic scan.
Operator Interface features include:
- 640x480 LCD graphics display with a high-resolution resistive touchscreen
- 7 function keys and a system key
- USB Responder (Slave) port (mini-B 5pin) is available for programming
- USB Commander (Master) port (A) is available for exchanging files with USB FLASH drives
- Two (2) RS-232/485 ports support RTU/Modbus Commander / Responder (Master / Slave), ASCII In/Out, and PLC/Drive downloadable protocols
- Networking features an integrated CsCAN port
- All units feature a Removable Mass Storage device
The XL10e includes a factory-installed Ethernet port, providing full Ethernet functionality, including SmartRail I/O (Ethernet), HTTP web serving, FTP file transfer, Modbus TCP/IP Commander / Responder (Master / Slave), EGD, and more

Standard Models of the XL10e Controller

Model ID	Digital I/O	High Speed In	High Speed Out	Analog In	Analog Out	Temperature In	CANbus
Model 0: HE-XV1E0	–	–	–	–	–	–	1 port
Model 2: HE-XV1E2	12/6 Relay	4 @10kHz	–	4 10-bit	–	–	1 port
Model 3: HE-XV1E3	12/12	4 @10kHz	2 PWM	2 10-bit	–	–	1 port
Model 4: HE-XV1E4	24/16	4 @10kHz	2 PWM	2 10-bit	–	–	1 port
Model 5: HE-XV1E5	12/12	4 @10kHz	2 PWM	2 14/16-bit	2 12-bit	thermocouple, RTD	1 port
NOTE: This product is no longer available for purchase. We recommend the all-new XL10 Prime or consider the Canvas 10D instead. For engineering and product selection support, please contact our sales team (281) 491-3833 or sales@psctexas.com.
