The Micro OCS Series, from Horner Automation, is considered "mature" and will soon no longer be in production. We recommend considering the newest 10" models, the XL10 Prime, XL10W Prime, and the Canvas 10D.

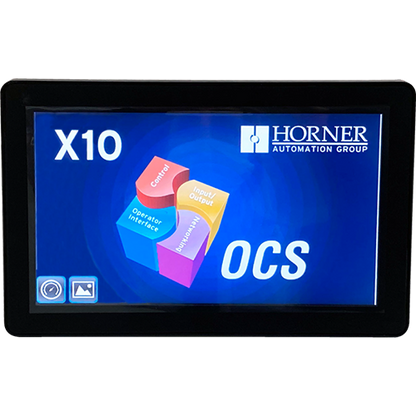

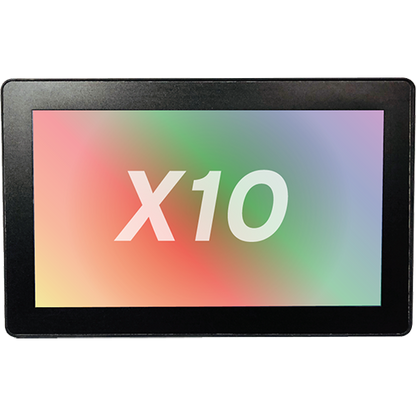

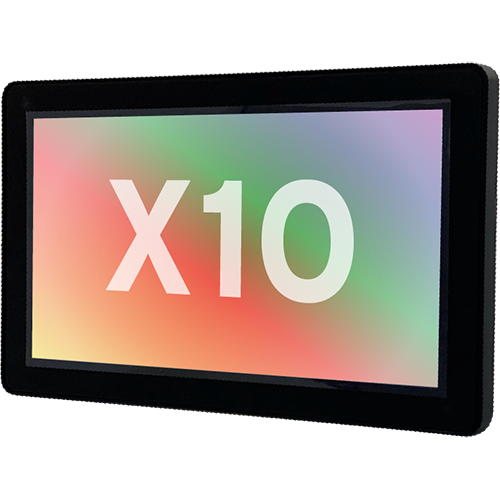

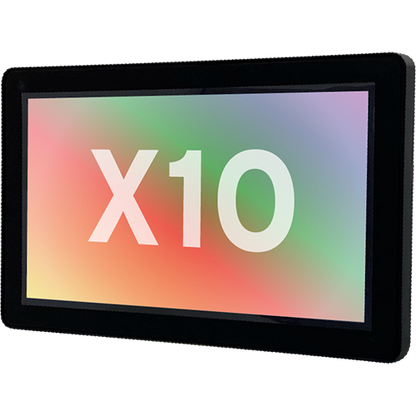

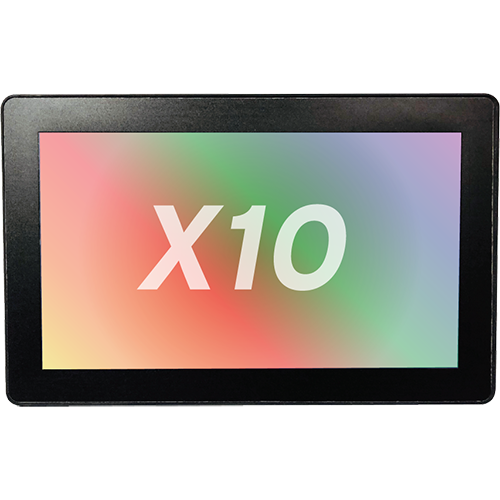

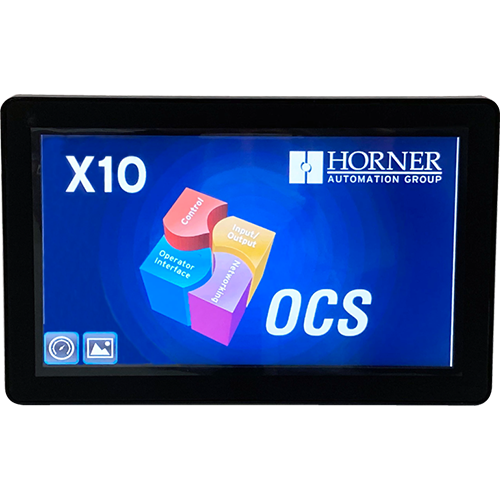

Powerful Automation Control Solution - the X10 Micro OCS HMI / PLC
The X10 HMI and PLC, from the Micro OCS Series, offers a slim, versatile, as well as complimentary product to our existing line of robust industrial solutions. The X10, as an introductory piece, empowers your organization to grow by seamlessly incorporating additional Horner solutions such as the OCS-I/O for remote I/O expansion.
In the market of cost-effective all-in-one automation controllers, the web-compatible X10 excels in its ability to control and communicate, in addition to logging data. Ideal for applications across a diverse range of industries, the X10 exceeds standards as well as expectations. Moreover, with its capable processor speed and large, intuitive user interface, the suite of capabilities within the X10 expand upon our XL4 and X7 products.
Flexible I/O Configuration

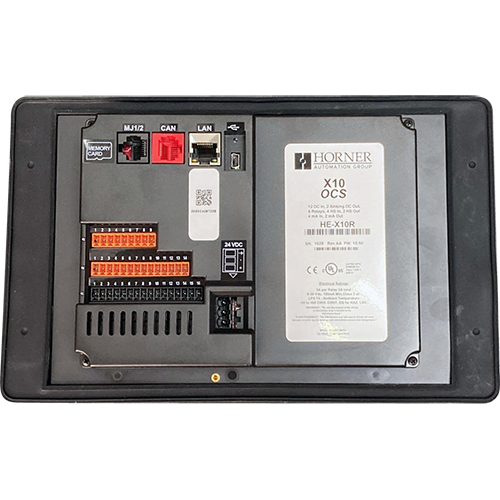

In an effort to make Horner OCS controllers as widely applicable as possible, the X10 offers a streamline set of onboard I/O, thus supporting an impressive array of applications. Discrete manufacturing brings 20-24 digital I/O points – including high-speed inputs and outputs. The X10 includes analog inputs and outputs, with support for 4-20mA signals and RTD temperature sensors. If the built-in I/O isn’t enough for your specific application – easily expand via Ethernet, CAN, Modbus, or RS-485.
Space Saving Design, Compact Controller

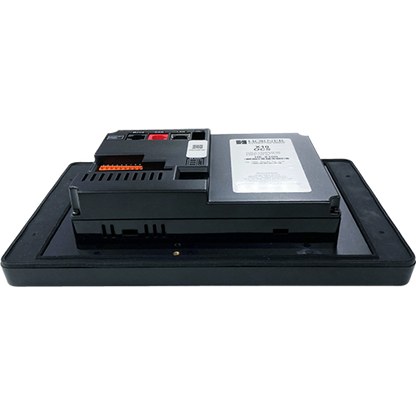

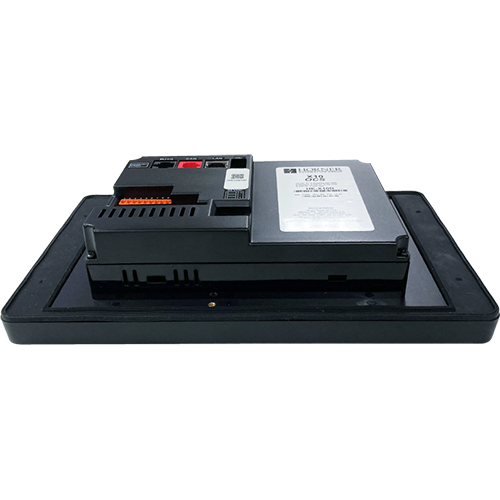

The wide, sleek profile of the X10 enables you to fit more in your panel, saving space and resources. The X10 packs a big picture into an overall small package. With a 6.607x10.433" cutout, this 10" wide aspect screen is very user-friendly as well as intuitive.

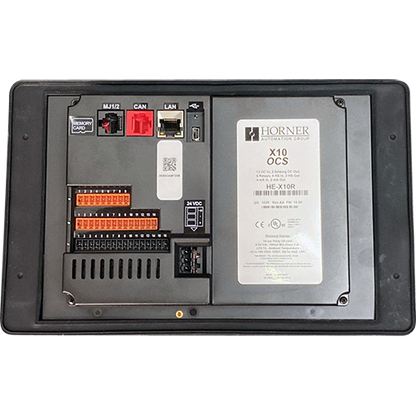

Standard Models of the X10 Automation Controller
| Built-In I/O | Model A (HE-X10A) | Model R (HE-X10R) |
|---|---|---|
| DC In | 12 | 12 |
| DC Out | 12 | 2 |
| Relays | – | 6 |
| HS In | 4 | 4 |
| HS Out | 2 | 2 |
| mA In | 4 | 4 |
| mA Out | 2 | 2 |
| Note: There are four high-speed inputs of the total DC Inputs. There are two high-speed outputs of the total DC outputs. | ||
| Note: Model A - supports sourcing outputs. Model R - DC outputs are sinking with integral pull up resistors. |
||
Special Order Options (Adders)
| Part Number Extension | Description |
|---|---|
| -443 | CANopen License is pre-loaded, also CsCAN support is removed. |
| -444 | BACnet IP/MSTP License is pre-loaded |
| NOTE: Lead time on special order products is typically 4-6 weeks. | |
